Power World PHP03Hs-W - Electrical Wiring; Wiring Diagram

- 11 -

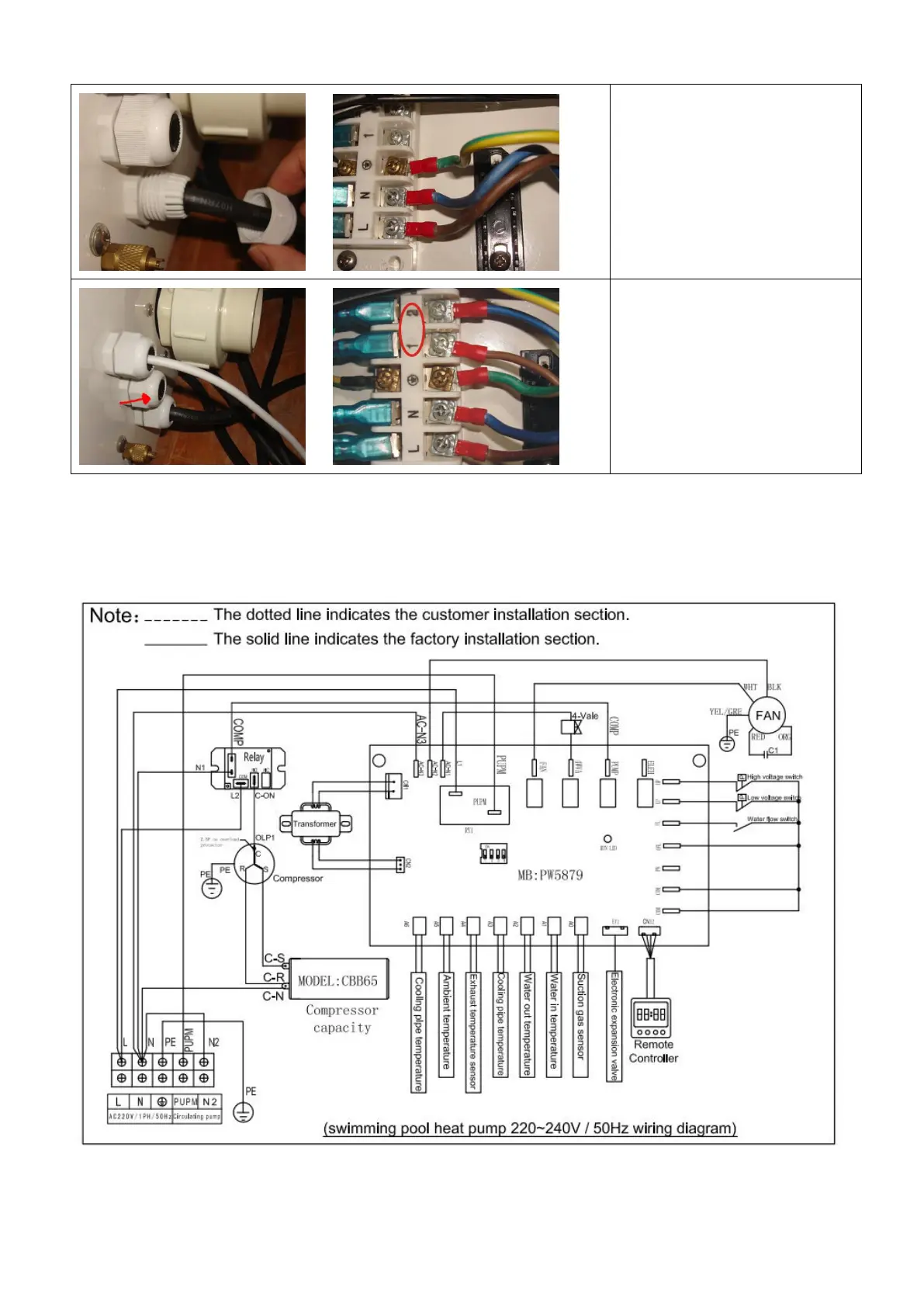

Cable wiring
1. Connect the power supply
wire through the white hole
like the picture shows.
2. Fix the other side on
joints inside the electric box.
Water pump wiring
1. Connect the water pump
wire through the white
marked hole
2. Fix the other side on
joints inside the electric box.
5. Electrical Wiring
5.1 WiFi SWIMMING POOL HEAT PUMP WIRING DIADRA
PHP 03/06/09/12Hs-W
