PAGE 13 OF 19

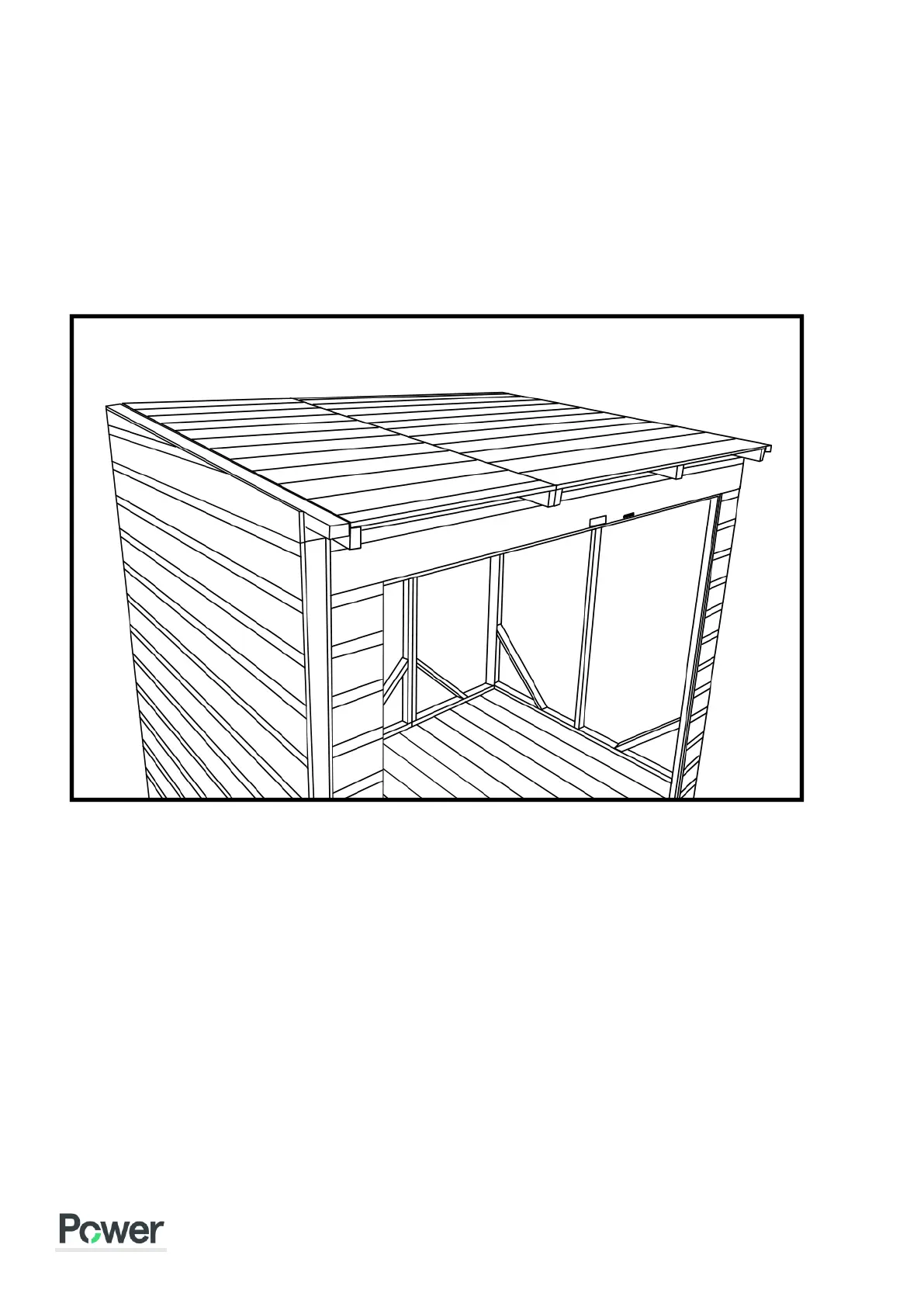

Roof
1. Your pent will come with two roof panels if it’s 6x4, 6x5 and 6x6 or one roof panel if it is a 6x2 or 6x3.
Place the roof panel(s) in place so that the framing on the roof panel rusn parallel with the gables i.e.
from the high side to the low side. These are not handed so can go on either side and does not
matter which direction the tongue and groove of the boards run as it will be covered by the felt and
bargeboards.
Make sure the framing on the roof is in line with the framing on the gable top so that the overhang
on the front and back is correct.
2. If applicable, join the roof panels to each other and to the gables using 50mm screws, going through
framing from the inside of the building.
3. Then, screw the roof panels to the front and back wall panels with 50mm screws (ensuring you screw
up through the framing of the front and back panel into the framing of the roof).
