PowerBase 577138 - Step 2 - Assembling the grass collection bag

17
Step 2 – Assembling the grass collection bag

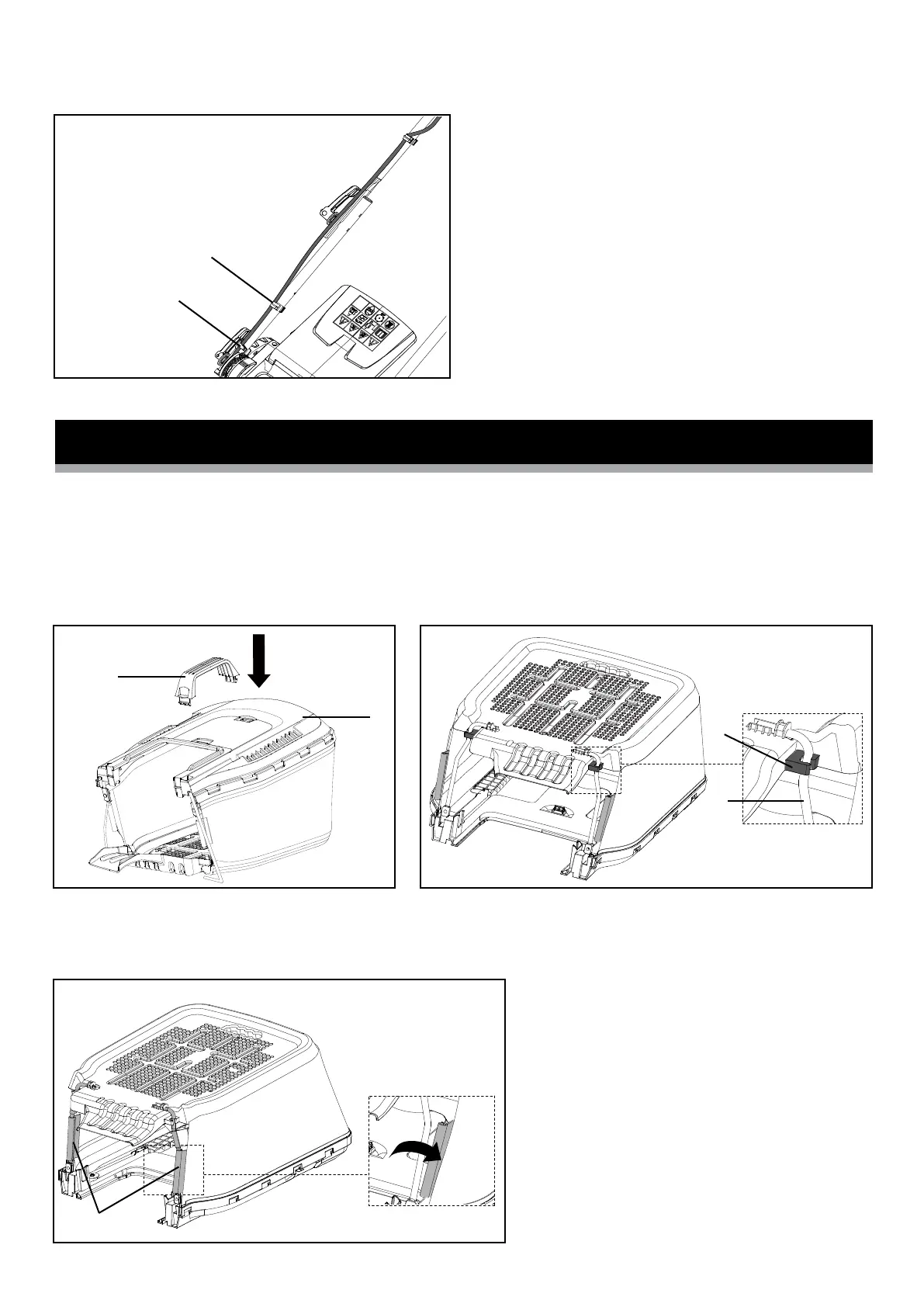

Fig. 3
1. Insert the handle (6) into the slots on the the grass collection bag top
(8) (Fig. 4).
2. Fully insert the rods of the metal frame (8b) into the slots (9b) on
either side of the plastic base (Fig. 5).
3. Secure the cable against the handle frame with the supplied cable
clips (17) and cable guide (15) (Fig. 3).
Fig. 4
Fig. 5
17
15
8
6
8b
9b
Fig. 6
3. Ensure the side clamping sleeves (9a) are properly fixed onto the
frame (Fig. 6).
9a
