15

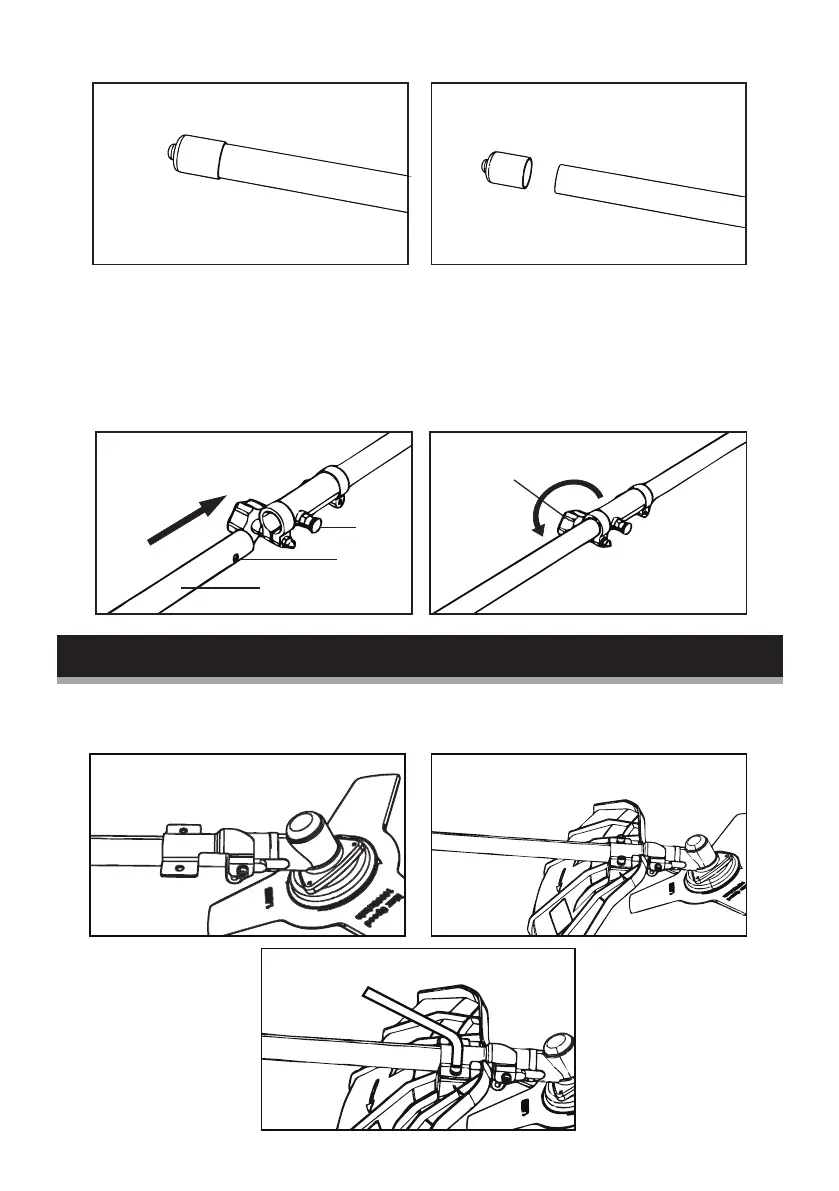

2. Remove the sleeve on the lower shaft
3. Assemble the lower shaft
Push the lower part of the shaft (b) right down until the stop pin (a)
slots into the hole (c) in the shaft. This is easier to do if you rotate
the bottom of the shaft (b) slightly in both directions. The pin (a) is
in place when it is completely lodged in the hole. Lastly, tighten the
knob (d) securely.
a
b
c
d
Assemble the safe guard
Fix the safety guard with the hex key and wrench (provided as
standard accessories for tightening the nuts). Picture below.
