POWERBOR PB70 - Illustrated Description of Functions

12 PB70 - W18XC1052 - Revised 040113
PB70 RAISED
PB70 LOWERED

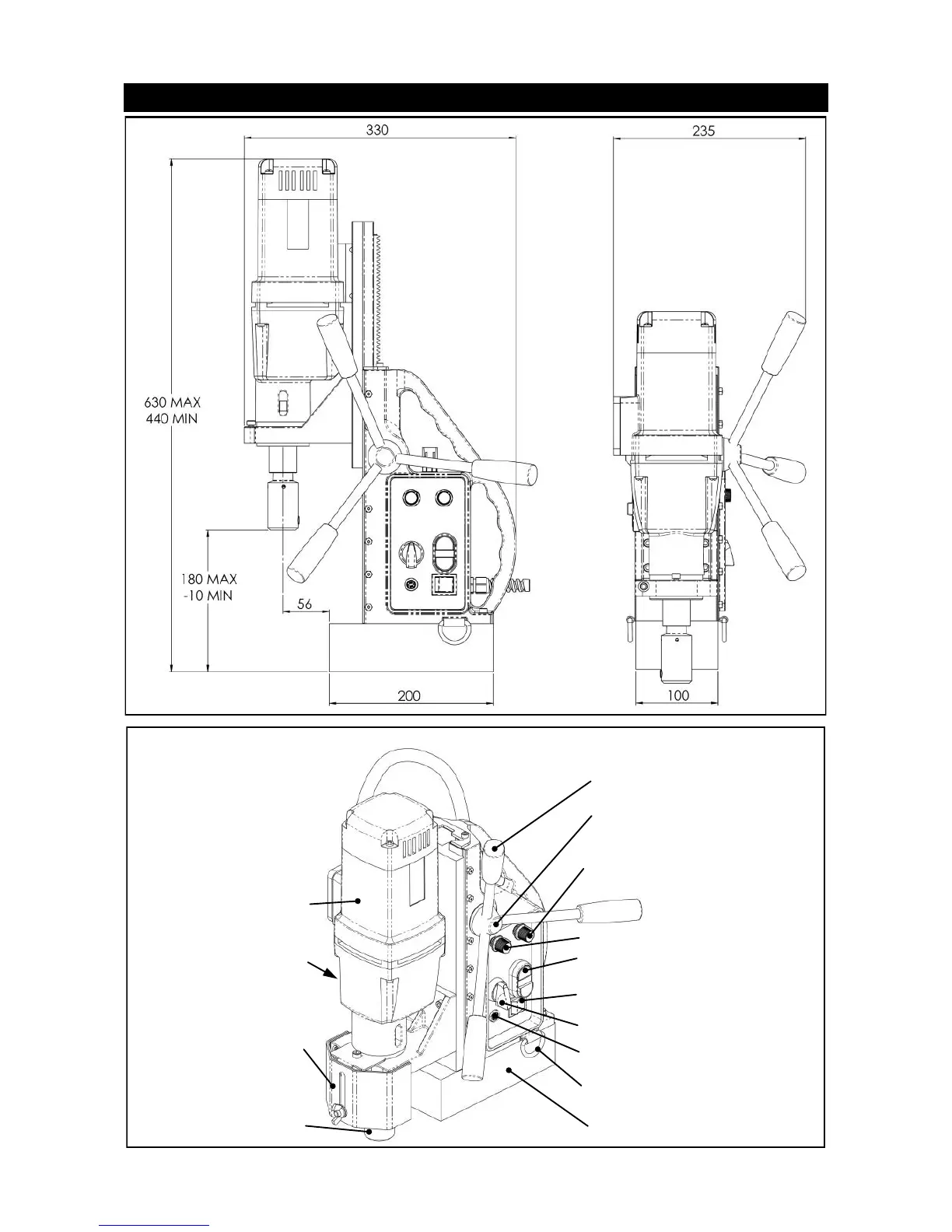

ILLUSTRATED DESCRIPTION OF FUNCTIONS
ELECTRO - MAGNET BASE
‘D’ LOOPS
FOR SAFETY STRAP
2A FUSE (MAGNET)
MAGNET ON/OFF SWITCH
MOTOR SPEED ADJUST
MOTOR ON/OFF SWITCH
PINION SHAFT
HANDLE x 3
GEAR SELECTOR
SAFETY GUARD
ARBOR
DRILL UNIT/MOTOR
MOTOR TORQUE BOOST
SPINDLE FWD/REV SWITCH
