Powerex ad series User Manual

4
Climate Control Duplex

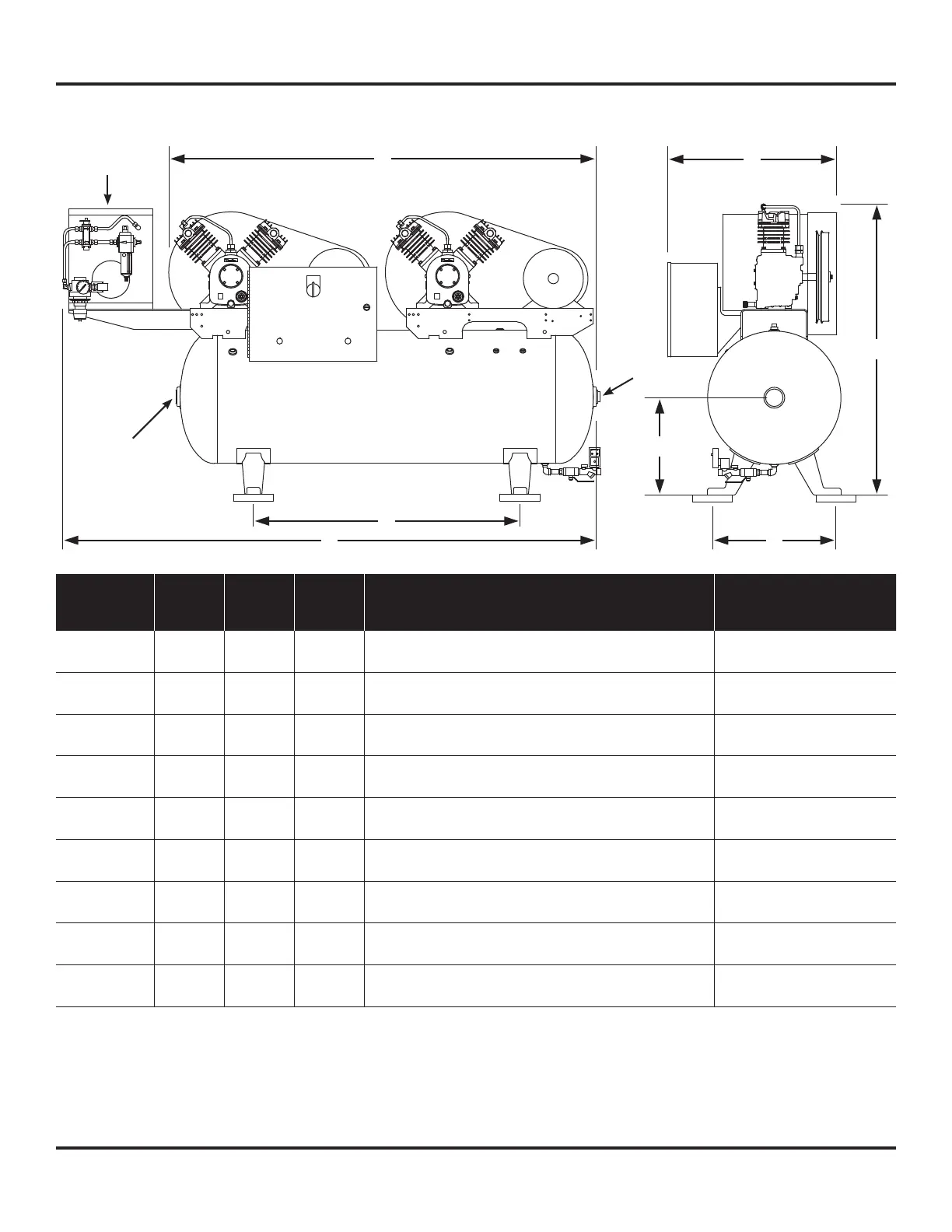

Unit Dimensions (inches *) and Shipping Weights (pounds *)
Base
Model A
B
with
Alternator
B
without
Alternator C D E F G
Unit Weight **
with
Alternator
without
Alternator
AD-107-1XX 41.50 24.00 17.75 36.50 18.00 15.75 12.25 57.25 298 278
AD-007-1XX 41.50 24.00 17.75 36.50 18.00 15.75 12.25 57.25 298 278
AD-107-3XX 63.60 27.00 20.00 42.50 40.00 18.00 14.60 70.00 463 443
AD-007-3XX 63.60 27.00 20.00 42.50 40.00 18.00 14.60 70.00 463 443
AD-110-1XX 41.50 24.00 17.75 36.50 18.00 15.75 12.25 57.25 297 277
AD-010-1XX 41.50 24.00 17.75 36.50 18.00 15.75 12.25 57.25 297 277
AD-110-3XX 63.60 25.00 20.00 43.30 40.00 18.00 14.60 69.80 462 442
AD-010-3XX 63.60 25.00 20.00 43.30 40.00 18.00 14.60 69.80 462 442
AD-015-1XX 41.50 25.80 17.75 38.75 18.00 15.75 12.25 57.10 322 302
AD-015-3XX 63.75 25.00 20.00 43.30 40.00 18.00 14.60 69.80 487 467
AD-020-3XX 63.75 26.00 20.00 43.60 40.00 18.00 14.60 80.60 512 492
AD-030-3XX 64.10 25.4 20.00 43.70 40.00 18.00 14.60 80.25 715 695
AD-030-4XX 70.75 28.10 24.00 48.20 42.00 18.00 16.80 81.75 845 825
AD-050-4XX 71.60 29.00 24.00 50.50 42.00 18.00 16.80 -- 988 968
AD-050-5XX 82.60 33.25 30.50 56.60 42.00 22.00 18.75 -- 1213 1193
AD-075-4XX 71.58 29.57 24.80 54.25 42.00 18.00 16.80 -- 1113 1088
AD-075-5XX 82.62 33.25 30.00 59.40 42.00 22.00 18.75 -- 1338 1313
AD-100-5XX 82.62 33.25 30.00 59.40 42.00 22.00 18.75 -- 1553 1528
* inches x 2.54 = centimeters; pounds x 0.454 = kilograms
** Add 60.0 pounds for units equipped with a factory mounted air dryer
A
G
D
F
E
C
B
Plug
Discharge
Optional Dryer
(3 HP and under)
