Climate Control Duplex
Quantity Shipping Code
Item Description Required Weight (lbs.) Number
A PUMP AND FLYWHEEL:
Motor HP 3/4 2 38 A-007-6001AP
1 2 38 A-010-6001AP
1-1/2, 2 2 51 A-020-6001AP
3 2 93 A-030-6001AP
5 2 120 A-050-6001AP
7-1/2 2 175 A-075-6001AP
10 2 198 A-100-6001AP
B VALVE KIT: Includes valve plate, spacer and head gasket
Motor HP 3/4, 1 2 0.5 A-010-6002AP
1-1/2, 2 2 0.5 A-010-6002AP
3 4 0.7 A-030-6002AP
5 4 1.2 A-050-6002AP
7-1/2 4 1.2 A-075-6002AP
10 6 1.2 A-075-6002AP
C RING/CYLINDER KIT: Includes all compression rings, oil control rings, cylinder, gasket and sealant
Motor HP 3/4, 1 2 4.8 A-010-6004AP
1-1/2, 2 2 4.8 A-010-6004AP
3 4 5.5 A-030-6004AP
5 4 10 A-050-6004AP
7-1/2 4 10 A-075-6004AP
10 6 10 A-075-6004AP
D INTAKE FILTER ELEMENT:
Motor HP 3/4, 1 2 0.1 A-010-6023AP
1-1/2, 2 2 0.2 A-010-6023NP
3 4 0.2 A-010-6023NP
5 4 0.2 A-010-6023NP
7-1/2 4 0.2 A-010-6023NP
10 4 0.2 A-010-6023NP
E IN-TANK CHECK VALVE:
Motor HP Size
3/4 Through 3 1/2 inch MPT x 1/2 inch FPT 2 0.3 A-010-6008
5 Through 10 3/4 inch MPT x 3/4 inch FPT 2 0.4 A-075-6008
F SAFETY RELIEF VALVE: Set at approximately 115 psig (805 kPa)
3/4 Through 5 HP Models 1 0.1 A-050-6009
7-1/2 Through 10 HP Models 1 0.2 A-200-6009

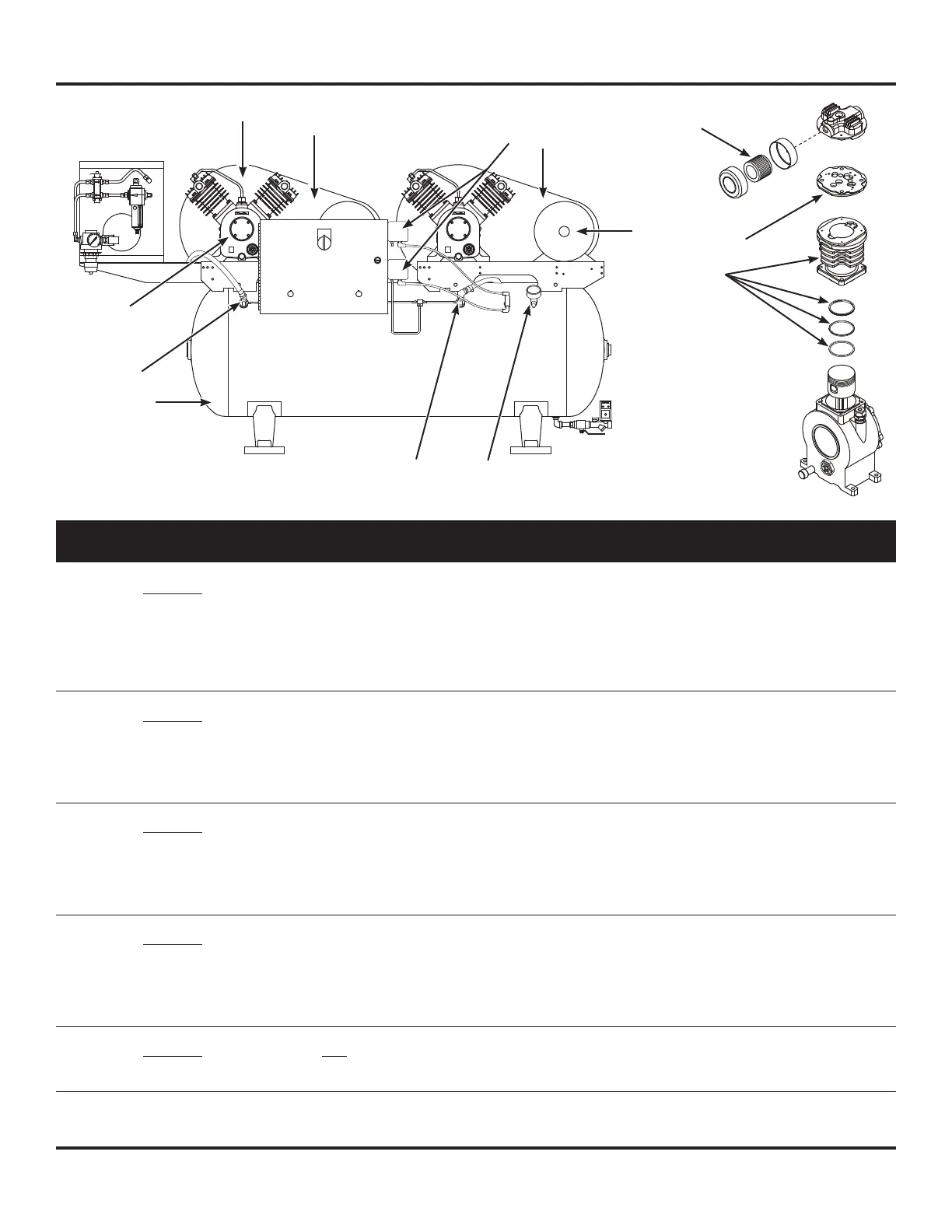

Replacement Parts List
D
B
C
L
G (inside belt guard)
K
F
H (inside belt guard)
A
E
E
J
M
