8.4 Installing endoscopic accessories

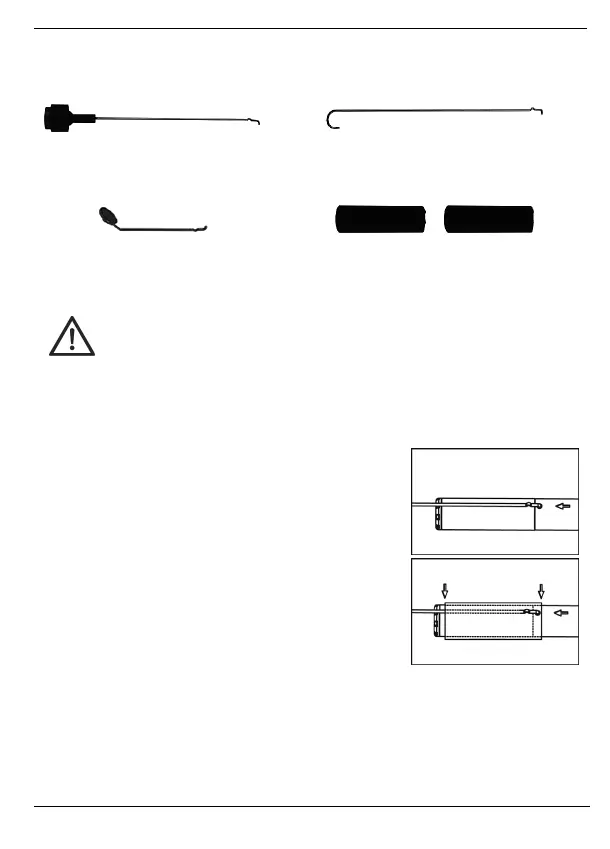

The endoscopic camera comes with the following useful accessories:
Magnet Hook
Mirror 2 fastening rings
The fastening rings are used to fix the magnet, hook and mirror. To fit one of these tools to
the camera (6), proceed as follows:
WARNING about property damage
Remove the smartphone from the smartphone holder before taking the
following steps. Otherwise, the handle of the endoscopic camera could slip
from the work surface and cause damage.
1. Push one of the fastening rings from the front across the whole camera (6) as far as
the gooseneck (5).
2. On the top of the gooseneck (5), on the camera (6)
attachment, there is a small recess. Feed the little
hook on the tool you want through this recess.
3. The fastening ring has a groove along its length.
Twist the fastening ring so that the metal bracket on
the tool engages into this groove and push the
fastening ring completely over the camera (6).
4. You can then put the smartphone back into the smartphone holder and use the
endoscopic camera as normal with the tool.
To remove the tool from the camera (6) again, remove your smartphone from the
smartphone holder and reverse the procedure.
