6. Close the grabbers by swivelling the
knurled screw (11) which has been
flapped away back into its original
position. Then carefully re-tighten both
knurled screws (11).
6.3 Inserting the smartphone into the smartphone holder

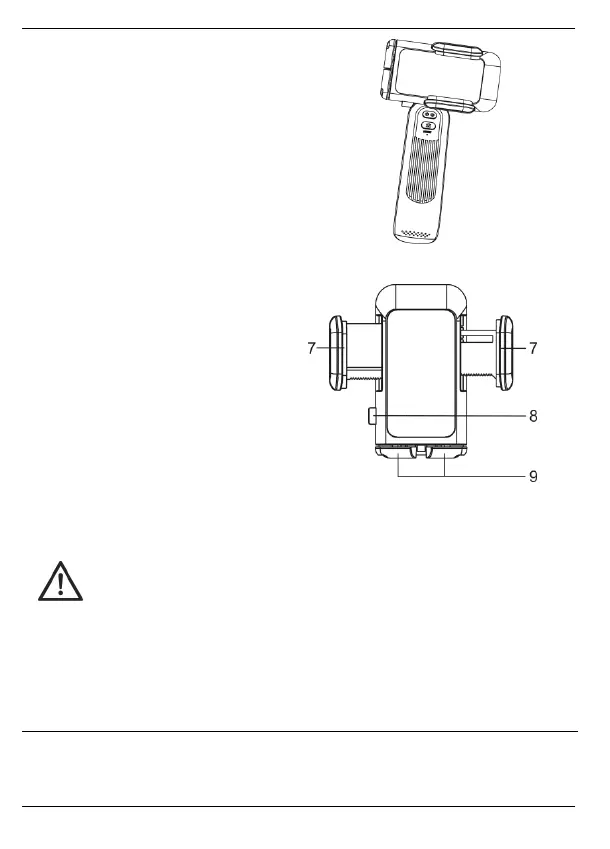

1. Fold out the two retractile holders (9)
towards the front so the smartphone
can "stand" on them.
2. Place your smartphone in the centre
of the smartphone shell (A). You may
need to press the unlock button (8) to
open the holder arms (7) completely
so that the smartphone fits (it supports
smartphones up to a width of 90
mm).
3. Push the two holder arms (7) together carefully to fix the smartphone in place. Make
sure that the holder arms (7) do not accidentally press any of the side buttons on your
smartphone.
WARNING about property damage
Do not apply force as you push the holder arms (7) together. Doing so
could damage your smartphone or the smartphone holder.
4. Loosen the knurled screw (10) and use the ball joint to position the smartphone so
you can see the display clearly.
5. Re-tighten the knurled screw (10).
7. Getting started
Once you have prepared the endoscopic camera as described in the chapter above, you
can install the app and connect the smartphone to the endoscopic camera.
