Powerfix Profi PEKW 8 A1 User Manual

Powerfix PEKW 8 A1
English - 5

These operating instructions (line-art
illustration)

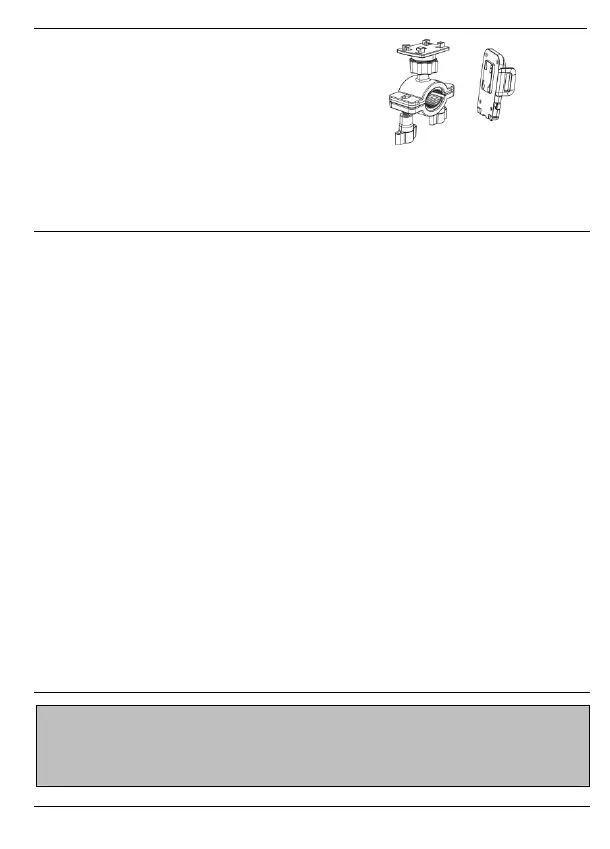

Holder for smartphone
(2 parts)
3. Controls and displays
These operating instructions have a fold-out cover. On the inside of the cover, the
endoscopic camera is shown with figures indicated. The meanings of the numbers are as
follows:
1 Reset switch
2 Photo and video record button
3 On/Off and brightness switch
Press and hold to switch on or off.
Press several times briefly to adjust the brightness of the light.
4 Status indicator (see the table under “Status indicator overview” on page 14)
5 Flexible gooseneck, not detachable
6 Camera
7 Holder arms for smartphone
8 Unlock button for smartphone holder
9 Retractile smartphone holders
10 Ball joint with knurled screw
11 Knurled screws
4. Technical specifications
Endoscopic camera
Length of gooseneck (5) with camera head (6): 100 cm
Dimensions of handle: 22 cm x 4.4 cm x 4.6 cm

Powerfix Profi PEKW 8 A1 Specifications

General

Brand	Powerfix Profi
Model	PEKW 8 A1
Category	Analytical Instruments
Language	English
