Leg Press Assembly Installation - Step 2

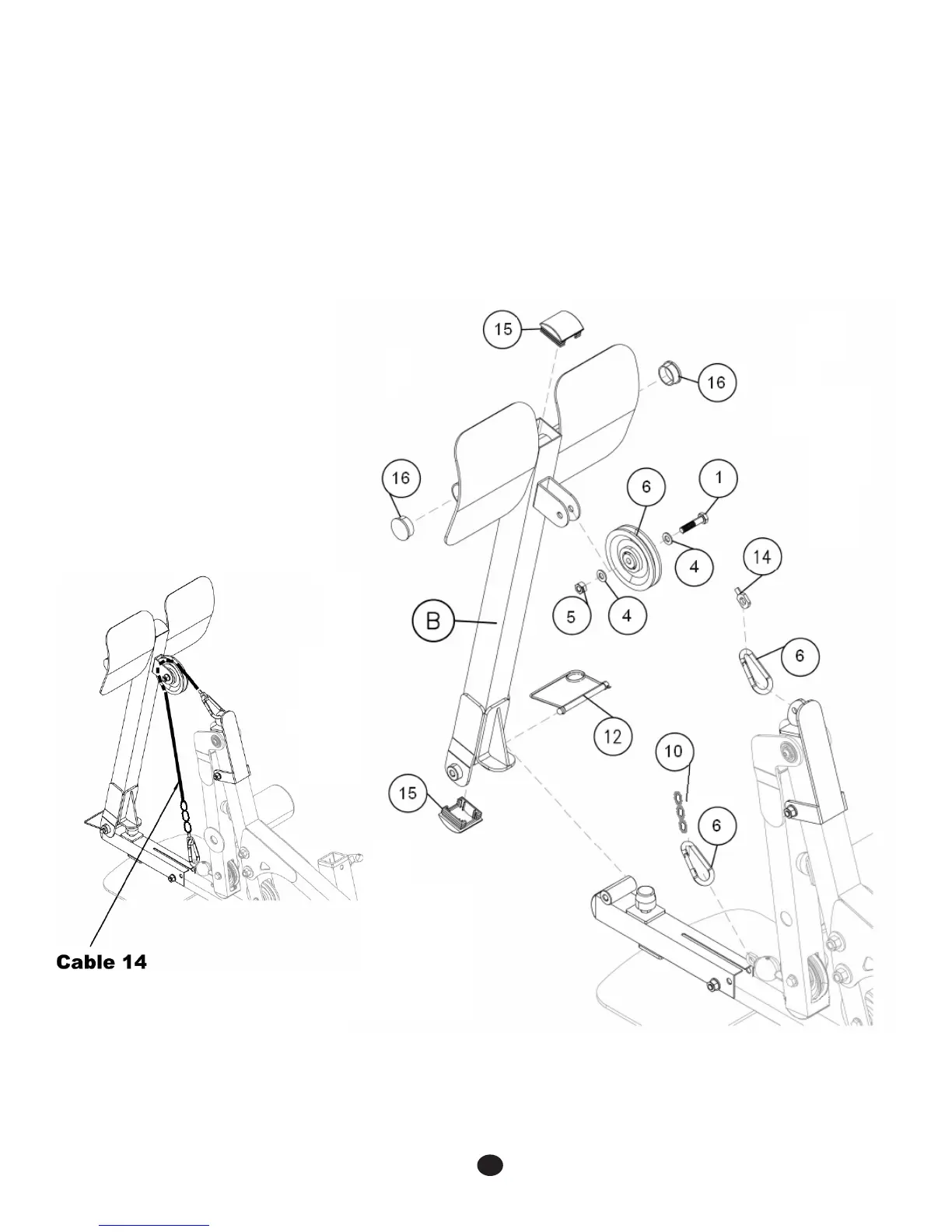

1. *Install plastic Endcaps (15) into the tube ends of the Leg Press Assembly (B). Install the plastic Endcaps (16) into the round
tube ends on the back sides of the upper foot plates.
2. Install the Leg Press Assembly into the Main Lower Bracket and secure with a Safety Pin (12).
3. Install the tension cable (65mm) along with the nylon pulley (3) into the bracket with bolt (1), washers (4), and nylon nut (5)
and tighten.
4. Attach Snap Links (6) to the cable ends (10) and (14). Secure the top Snap Link (13) into the hole at the top of the Leg Ex-
tension Bracket and the Lower Snap Link into the end of the existing Leg Extension cable.
3
*Attention: Some parts have been pre-installed.
Hardware pack measurement not to scale.
