Powermate CX6500E User Manual

4 Owner’s Manual for Portable Generator
Section 2 General Information and Setup

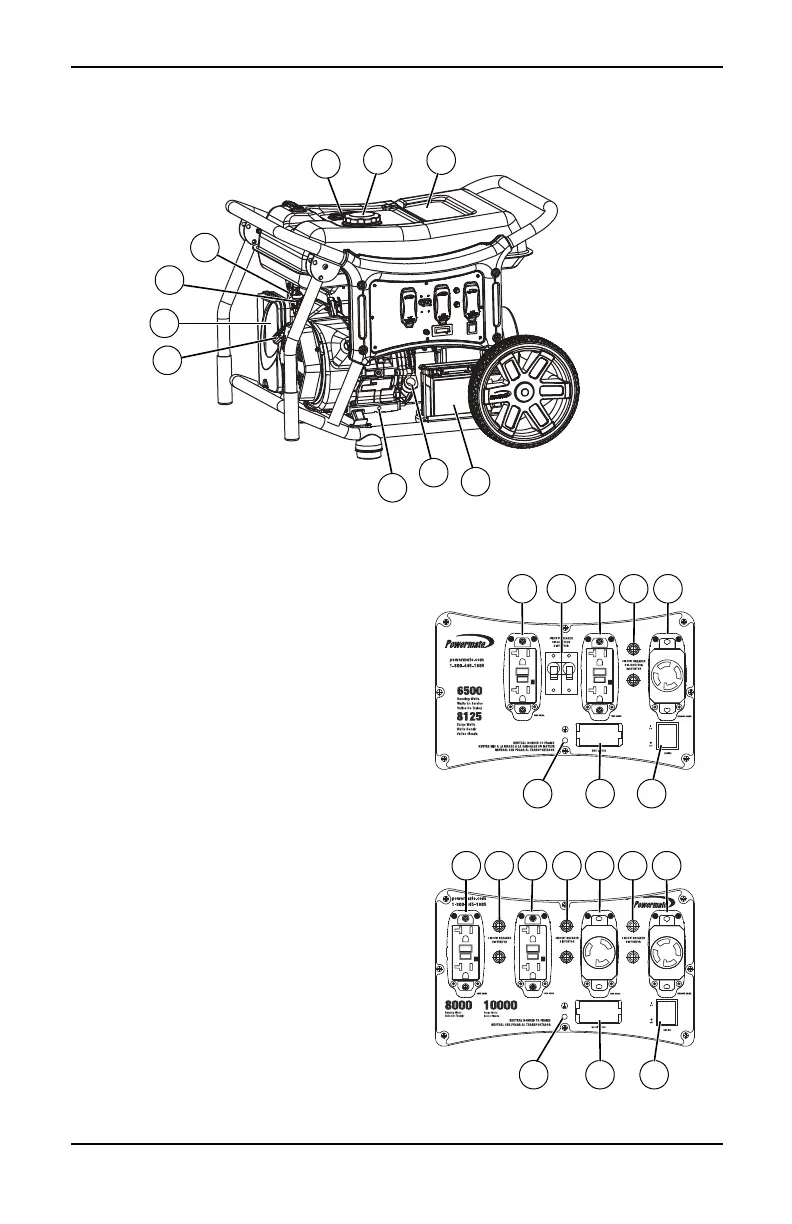

Figure 2-1. Features and Controls
TABLE 1. Generator Components
Figure 2-2. CX6500E Control Panel
Figure 2-3. CX8000E Control Panel
001602
9
8
15
12
11
13
10
16
14
17
1 120 Volt AC, 20 Amp GFCI Duplex
Receptacle
2 120 Volt AC, 30 Amp Locking
Receptacle (NEMA L5-30) (CX8000E
only)
3 120/240 Volt AC, 30 Amp Locking
Receptacle (NEMA L14-30R)
4 Circuit Breakers (AC)
5 Off/On/Start Switch
6 Hour Meter
7 Ground Terminal
8 Choke Lever
9 Fuel Tank
10 Oil Drain
11 Oil Fill
12 Air Cleaner
13 Recoil Handle
14 Fuel Shutoff Valve
15 Fuel Cap
16 Fuel Gauge
17 Battery
001603
1 441
5
3
67
001523
4 3
6
41
57
41 2

Powermate CX6500E Specifications

General

Brand	Powermate
Model	CX6500E
Category	Portable Generator
Language	English
