ENG - 6

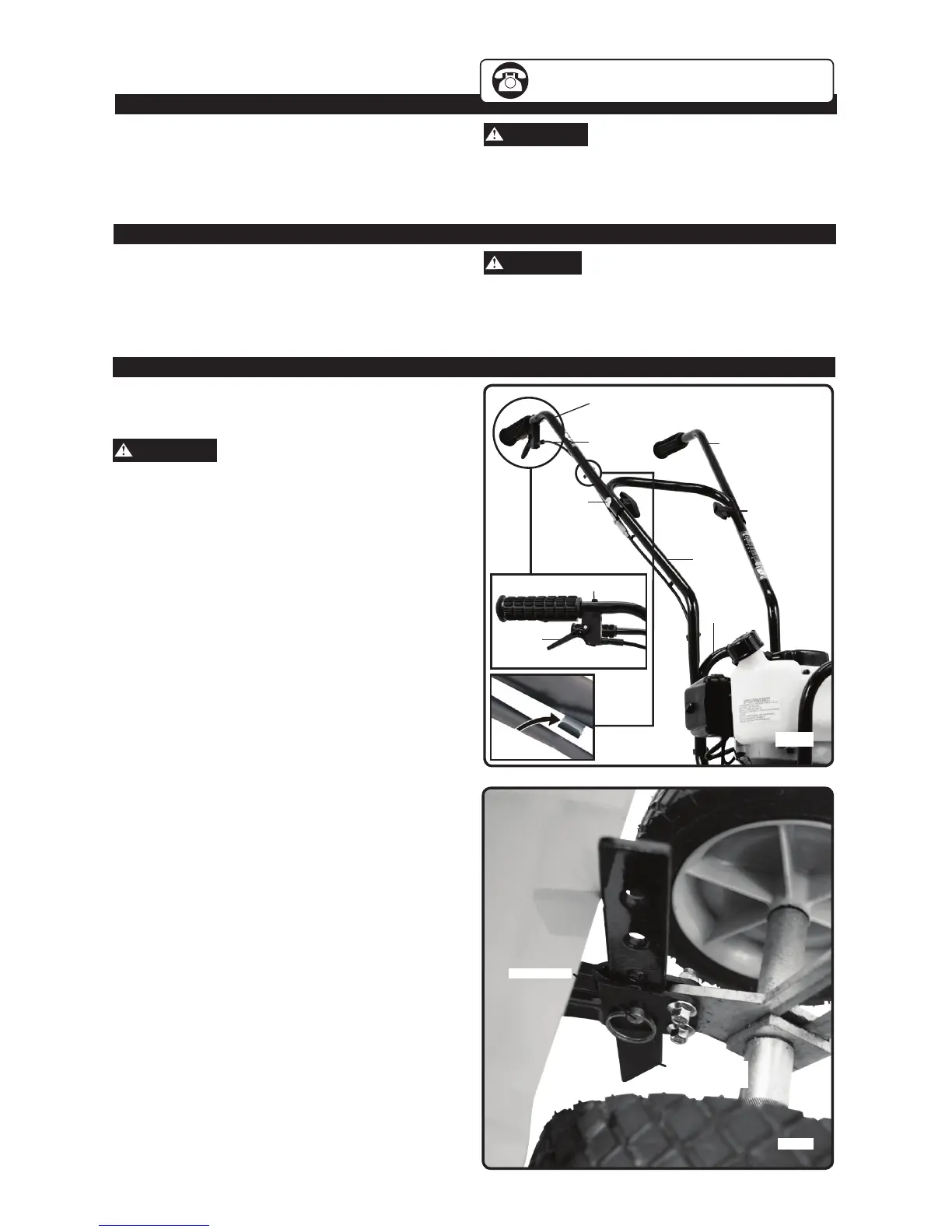

Fig. 2
Drag stake
pointed down
Detent Pin
Assembly
• Save all instructions
Parts Included with Cultivator
• Middle Handle (1)
• Upper Handles (2)
• Wing nuts and bolts (4 ea.)
• Cable Ties (3)
• Operator’s Manual (1)
• 2.6 fl. oz US bottle of 2-Cycle engine oil (1)
How to Unpack Cultivator from Carton
1. Remove all parts and packing components.
2. Use a utility knife to cut all 4 vertical edges. Lay the side
panels flat around the cultivator.
3. Remove inner components and packaging.
Fig. 1
Lower
Handle
Middle
Handle
Left Upper
Handle
Right Upper
Handle
Wingnut
Bolt
Throttle
Wire
Screw
Throttle
Trigger
If you need assistance or find any parts missing,
CALL TOLL FREE: 1-800–737-2112
WARNING
Do not operate cultivator if it is damaged or not securely and
fully assembled.
CAUTION
Use care when removing parts not to damage any cables or
wires that are attached to the parts.
4. Roll the unit out from the carton, and place on a hard
level surface.
How to Assemble the Handles and Drag Stake
1. Place the cultivator upright with tines and wheels on
a hard level surface. Wheels should be set in the
lowest position.
WARNING
Do NOT place the cultivator on a high surface where it can
fall and cause property damage or personal injury.
2. Assemble the middle handle to the lower handle with the
2 bolts and wing nuts. Refer to Figure 1. Firmly hand-
tighten the wing nuts.
3. Attach the upper handles to the middle handle using the
two remaining bolts and wing nuts. Refer to Figure 1.
4. Assemble the throttle trigger to the right upper handle with
the screw. Use included wrench. See Figure 1.
5. The drag stake is shipped with the point facing upwards.
To use for cultivating, remove detent pin, and turn the
drag stake upside down so the point faces downward.
Re-insert the detent pin. Refer to Figure 2.
6. Secure the throttle cable to the handle with FIVE
retaining clips already mounted to the handle. Refer to
Figure 1.
NOTE: Use the metal retaining clips to secure the throttle
cable, while use cable tie only to secure the ignition wire.
To Next Page
