Product Specifications
• Save all instructions
Parts & Features
Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .100 lb (45 kg)
Tilling Width . . . . . . . . . . . . . . . . . . . . up to 21 in (53.3 cm)
Tilling Depths . . . . . . . . . . . . . . . . . . . . . . up to 8” (20.3 cm)
Tine Diameter . . . . . . . . . . . . . . . . . . . . . . . .11 in (27.9 cm)
Gasoline Type .......Regular Unleaded/87 Octane (min.)
Gasoline Capacity . . . . . . . . . . . . . . . . . . . 1.06 US qt. (1 L)
Engine Oil Type (API SG-SL) . . . . . . . . . . . . . . . . . . . . . . . .
10W-30 is recommended for all service temperatures.
See page (10) for additional information.
1. Tines
2. Swing Plate
3. Wheels
4. Wheel Bolts
5. Muffler
6. Air Filter
7. Recoil Starter Handle
8. Spark Plug / Spark Plug Wire
9. Drag Bar
10. Primer Bulb
11. Fuel Tank Cap
12. Oil Dipstick
13. Clutch Lever
14. Tine Shield
15. Outside Tine Shield
Engine Oil Capacity . . . . . . . . . . . . . 15-1/2 US oz (450 ml)
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . .OHV4-stroke
Engine Displacement . . . . . . . . . . . . . . . . . . . . . . . . 139cc
Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3400 rpm
Torque Rating ..... 5.0 ft-lbs gross torque per SAE J1940
Wheel Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8” (20.3 cm)
Transmission Oil Type . . . . . . . . . . . . . . . .90W140 Gear Oil
Transmission Capacity . . . . . . . . . . . . . 6-1/2 US oz (0.2 L)
REFER TO ENGINE MANUAL FOR DETAILED ENGINE SPECS.

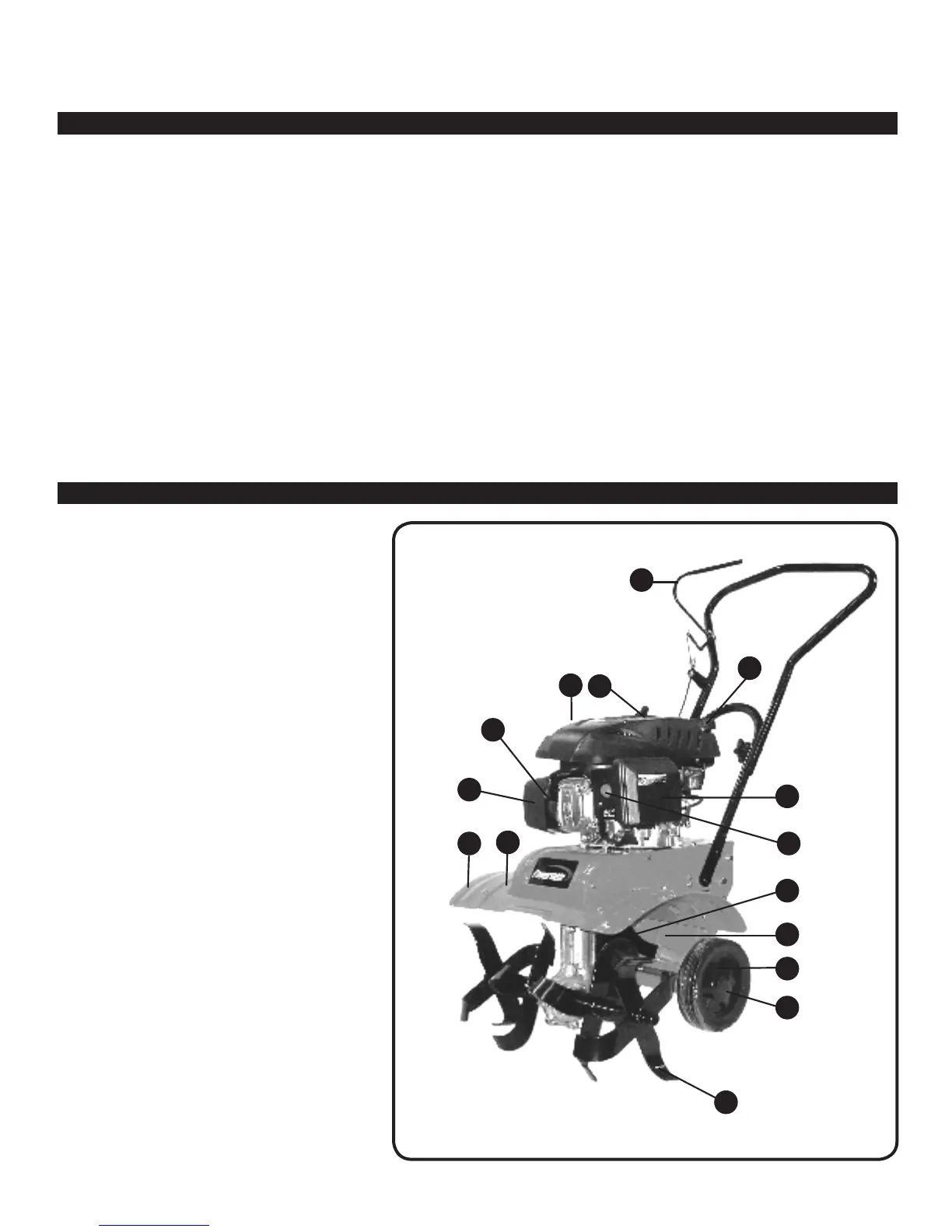

Figure 1
9
1
2
10
3
4
5
6
7
8
11
13
12
14
15
