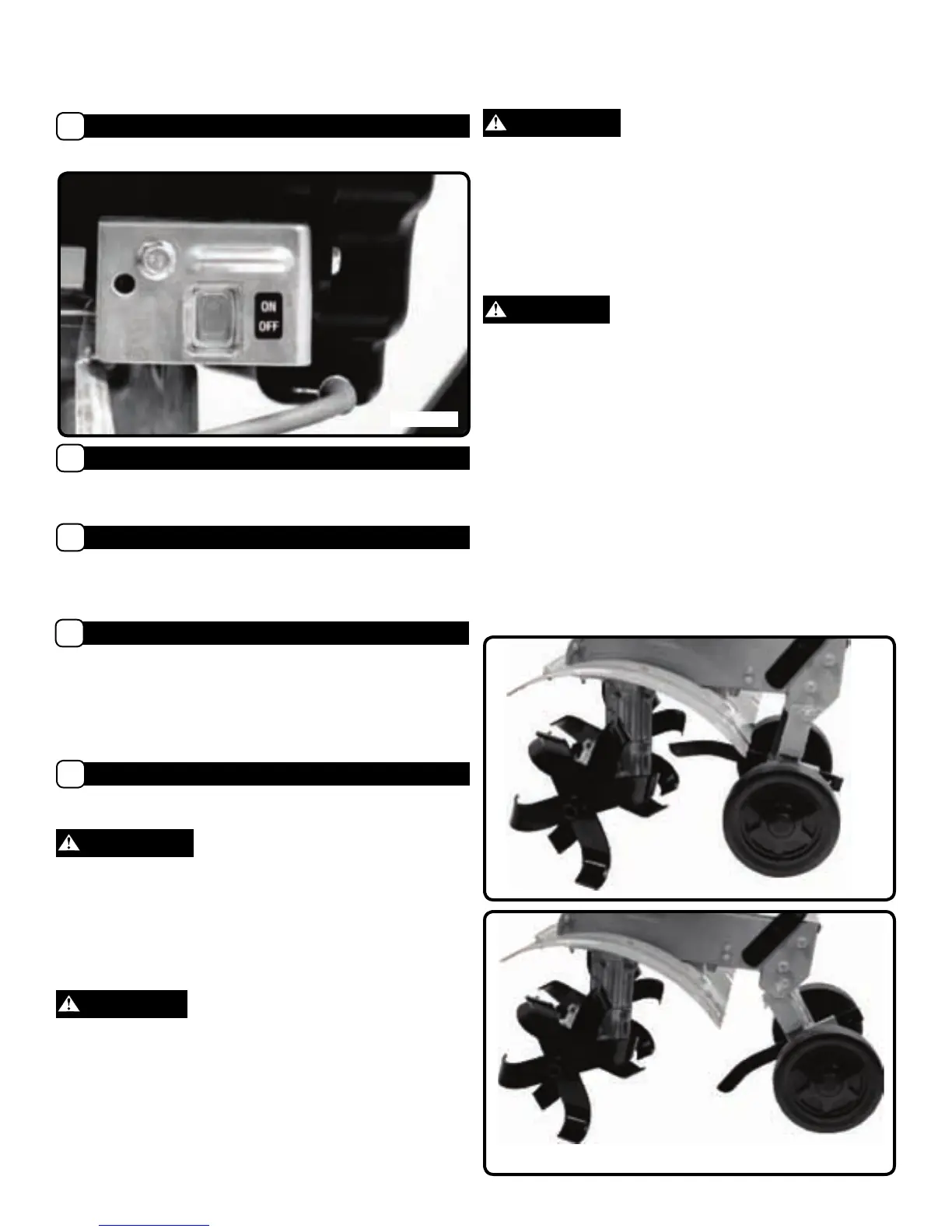

Figure 11
Figure 12
Figure 10
12
Operation (Continued)
• Save all instructions
Stop the Engine
C
1. Press ON/OFF switch to OFF position.
Operating Speed
D
This tiller is equipped with a fixed throttle that is set for
optimum tilling performance.
Shutting Down
E
To stop the engine at any time, release the clutch lever and
press ON/OFF switch to OFF position. To stop tines at any time,
release clutch lever.
Tilling
G
1. Adjust the drag bar to desired tilling depth.
WARNING
NOTE: Lower the drag bar one hole at a time testing tiller
operation after each adjustment. Lowering drag bar down too
low can result in loss of control of tiller!
2. Pushing down on the clutch lever will engage the tines to
move tiller forward.
CAUTION
RESULT IN EXCESSIVE DRIVE BELT WEAR AND PRE-
MATURE DRIVE BELT FAILURE.
WARNING
TEMPERATURE OF MUFFLER AND NEAR BY AREAS MAY EX-
NEUTRAL POSITION.
DANGER
ENGINE, TRANSMISSION AND SURROUNDING PARTS BECOME
IMPORTANT: -
-
TROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE
PROCEEDING.
Transport Mode and Tilling Mode (See Figure 11 and 12)
F
Transport Mode
Fold the wheel under the engine for convenient transport.
Tilling Mode
Unfold the wheel back for tilling operation.
