Powermate PM400911 - Page 37

200-2341 37
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
P
P
A
A
R
R
T
T
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
-
-
E
E
N
N
C
C
L
L
O
O
S
S
U
U
R
R
E
E

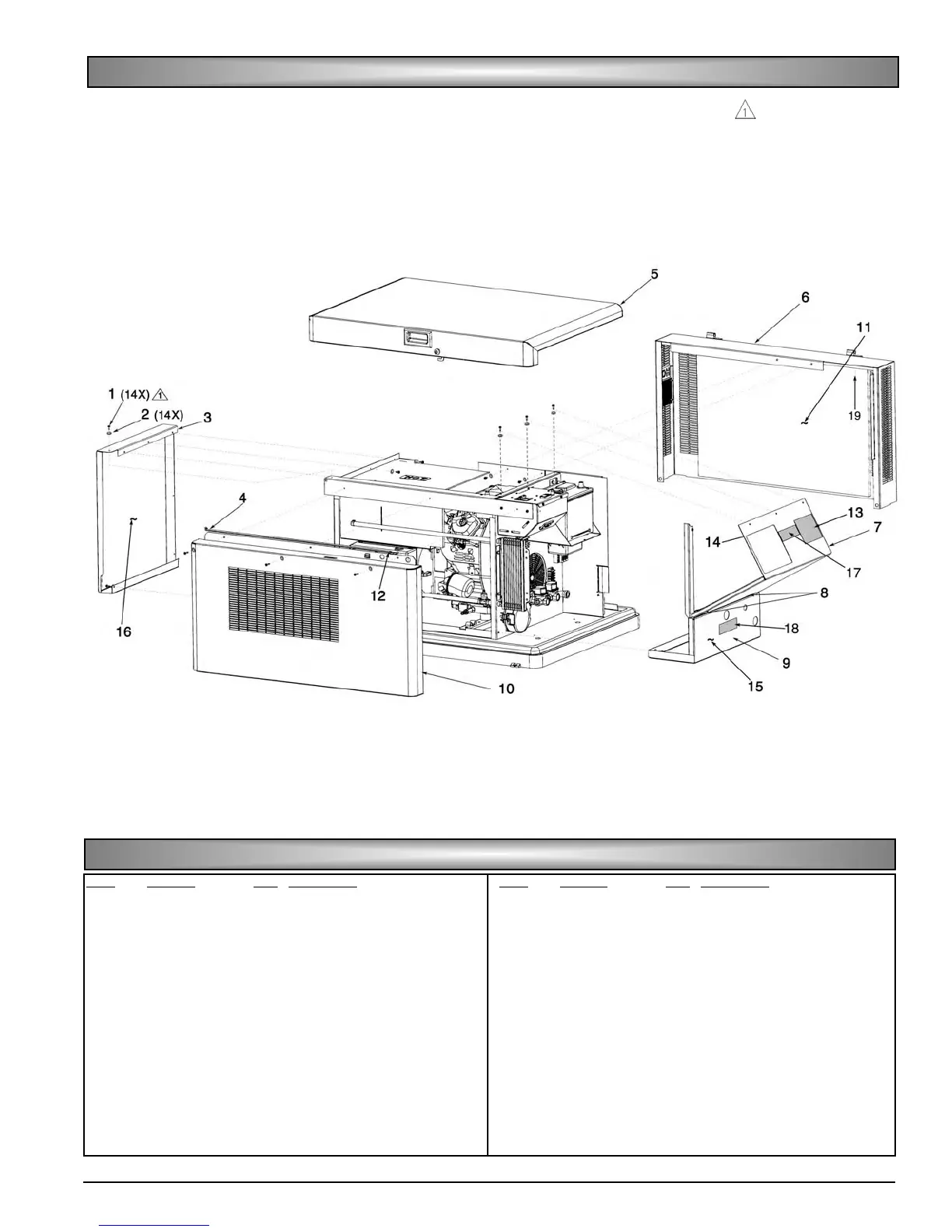

Item
Part No Qty Description
1 N/A 14 Screw, 10-16 x .50” lg
2 N/A 14 Star washer, #10
3 115-0264 1 Side panel, left side (includes
item 16)
4 S115-0242 1 Prop arm, lid
5 S115-0240 1 Lid assembly, complete (see
page 38 for separate parts)
6 115-0265 1 Panel, back (includes items 11 & .
19)
7 115-0266 1 Access panel, top portion
(includes items 13, 14 & 17)
8 107-0061 2 Hinge, swivel
9 115-0267 1 Access panel, bottom portion
(includes item 15 & 18)
10 S115-0218 1 Door assembly, (includes inner
door panel)
11 094-0075 1 Insulation (not shown)
Item
Part No Qty Description
12 103-0121 1 Clip, hood rod
13 098-2758 1 Warning label
14 094-0084 1 Insulation (not shown)
15 094-0076 1 Insulation (not shown)
16 094-0083 1 Insulation (not shown)
17 098-2856 1 Warning label
18 098-2759 1 Fuel label
19 094-0078 1 Insulation, exhaust top (not . . . . .
shown)
Not shown 094-0108 1 Weather seal (3/16” h x
1/2” w x 12’ lg)
Not shown 094-0107 1 Weather seal (1/8” h x
1/2” w x 12’ lg)
*N/A - These are standard parts available at your local
hardware store.
Torque to 15 lbs-in
