38 200-2341

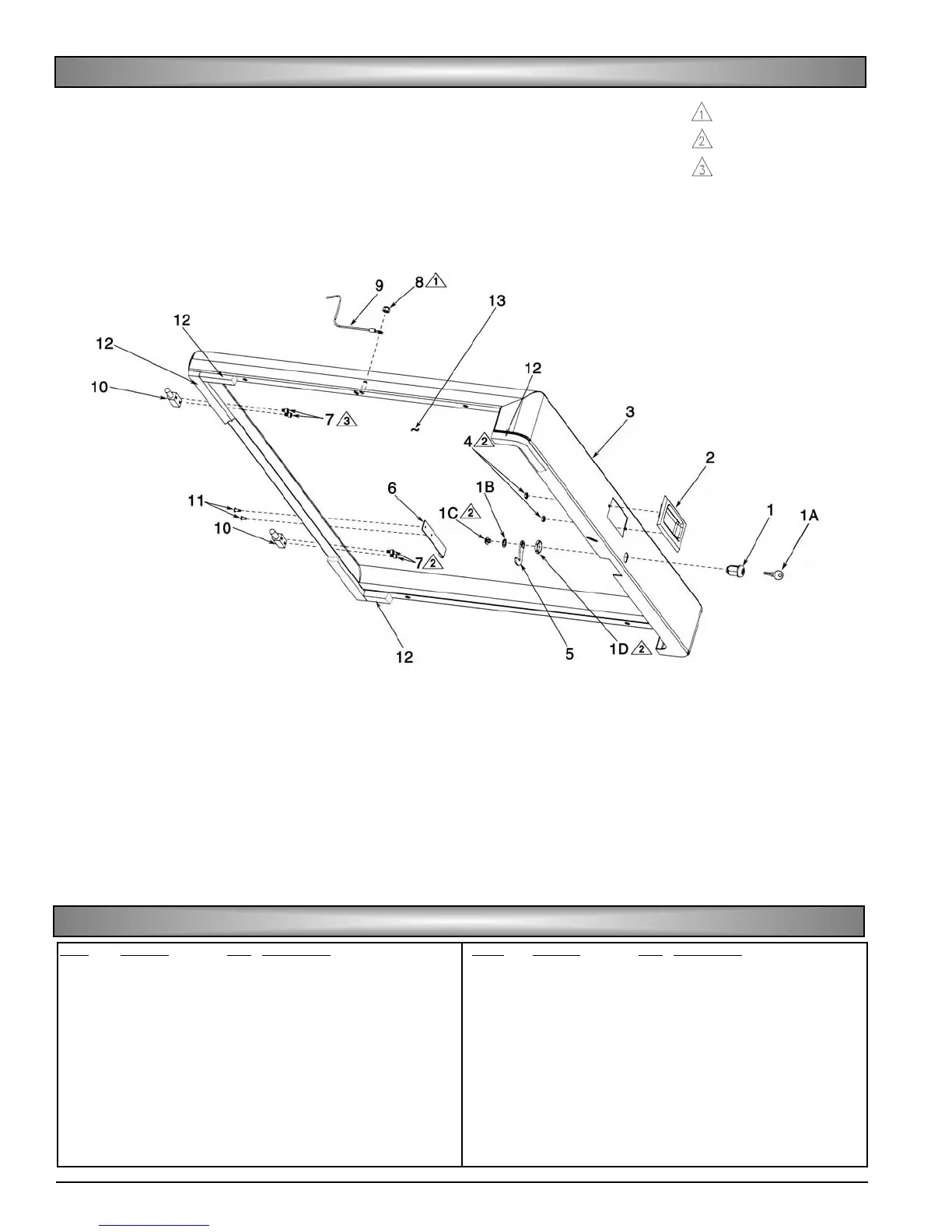

P
P
A
A
R
R
T
T
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
-
-
L
L
I
I
D
D
A
A
S
S
S
S
E
E
M
M
B
B
L
L
Y
Y
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
Item Part No Qty Description
1 0056765 1 Lock (includes 1A, 1B, 1C & 1D)
1A 146-0023 1 Key
1B Order item # 1 1 Washer
1C Order item #1 1 Bolt
1D Order item #1 1 Nut
2 0056761 1 Handle
3 S115-0251 1 Lid weldment (order S115-0240
for complete lid assembly)
4 N/A 2 Nut, 10-32
5 0056766 1 Lock, hooked pawl
6 114-0571 1 Bracket, lid stop
7 0058221 4 Screw, M5-.8 x 8MM
8 N/A 2 Nut, 1/4-20 Nylon stop
Item
Part No Qty Description
9 026-0535 1 Ground strap, 17” lg
10 107-0062 2 Hinge (includes (4) item #7)
11 N/A 2 Rivet
12 094-0106 1 Weather seal (1/4 h x 3/4 w x
12’ lg)
13 094-0077 1 Insulation
-- S115-0240 1 Lid assembly, complete
(includes all of the items listed
above)
*N/A- These are standard parts available at your local
hardware store.
Torque to 7 lbs-ft
Torque to 15-20 lbs-in
Torque to 24 lbs-in
