Product Specifications
• Save all instructions
Parts & Features
Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154 lb (70 kg)
Tilling Width . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 in (45.7 cm)
Tilling Depths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .up to 6”
Tine Diameter. . . . . . . . . . . . . . . . . . . . . . . . . . .11 in (27.9 cm)
Gasoline Type .........Regular Unleaded/87 Octane (min.)
Gasoline Capacity . . . . . . . . . . . . . . . . . . . . . 3.5 US qt. (3.3 L)
Engine Oil Type (API SG-SL) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10W-30 is recommended for all service temperatures.
See page (10) for additional information.
Engine Oil Capacity . . . . . . . . . . . . . . . . . . . 20 US oz (600 ml)
Transmission Oil Type . . . . . . . . . . . . . . . . . . . . SAE 90W-140
Transmission Oil Capacity . . . . . . . . . . . . . . 30 US oz (900 ml)
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Torch F7RTC
1. Tines
2. Tine Shield
3. Wheels
4. Wheel Lock Pins
5. Muffler
6. Air Filter
7. Recoil Starter Handle
8. Spark Plug / Spark Plug Wire
9. Depth Regulator
10. Throttle Control
11. Fuel ON/OFF Valve
12. Choke Control
13. On/Off Switch
14. Fuel Tank Cap
15. Oil Dipstick
16. Forward Lever
17. Reverse Lever
18. Front Handle
Spark Plug Gap . . . . . . . . . . . . . . 0.028-0.031 in (0.7-0.8 mm)
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OHV4-stroke
Engine Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 196cc
Engine Speed (Full Throttle) . . . . . . . . . . . . . . . . . . . 3600 rpm
Engine Speed (Idle) . . . . . . . . . . . . . . . . . . . . . . . . . . 2100 rpm
Torque Rating........ 9.6 ft-lbs gross torque per SAE J1940
Bore Diam. x Stroke. . . . . . . . . . . . 2.7 x 2.13 in (68 x 54 mm)
Intake Valve Clearance . . . . 0.004 - 0.006 in (0.10 - 0.15 mm)
Exhaust Valve Clearance . . . 0.006 - 0.008 in (0.15 - 0.20 mm)
Angle of Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 degrees
Tire Size .............. 13x5.00-6 Directional Tractor Tread
Tire Pressure . . . . . . . . . . . . . . . . . . . . . 20 psi min/30 psi max

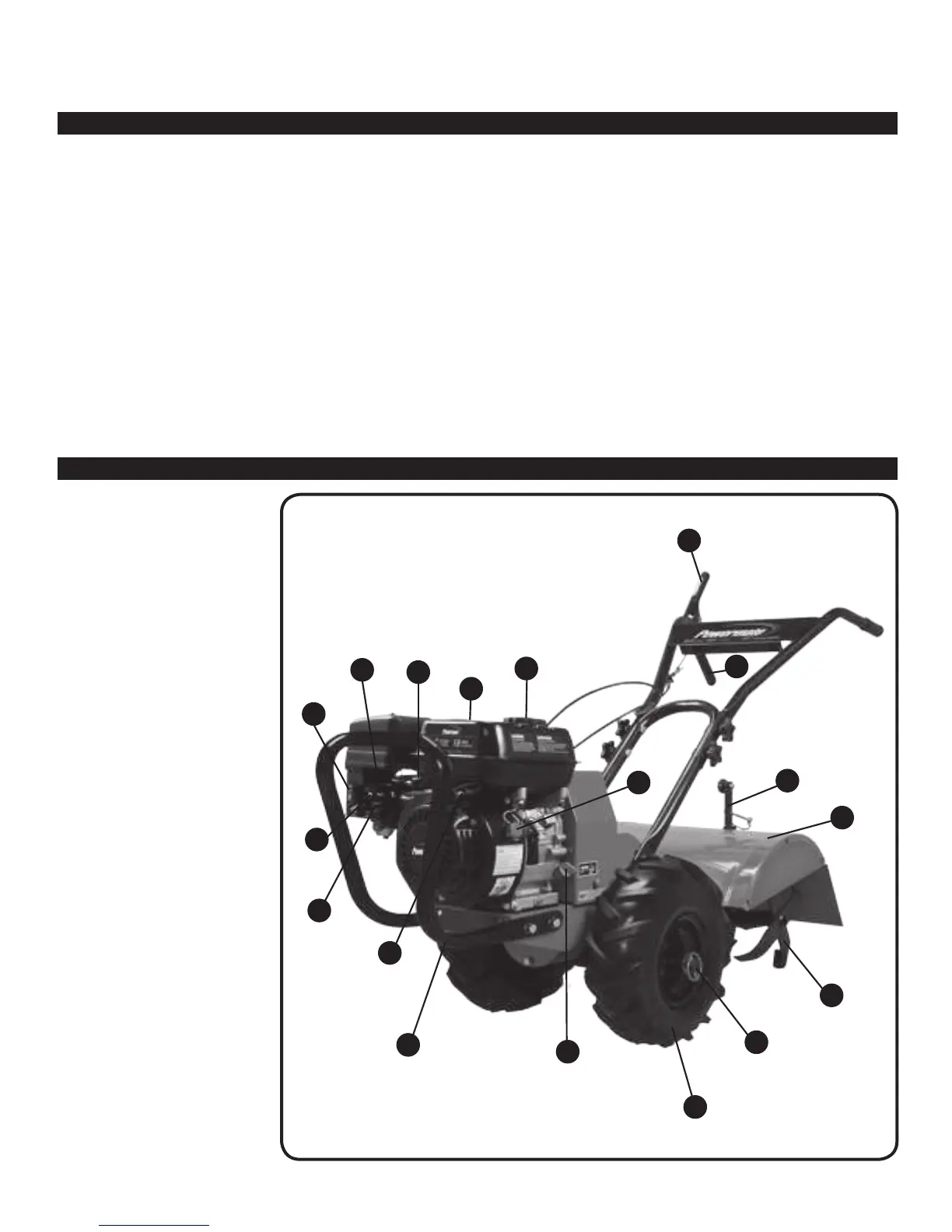

Figure 1
9
1
2
10
3
4
5
6
7
8
11
13
15
14
16
17
12
18
