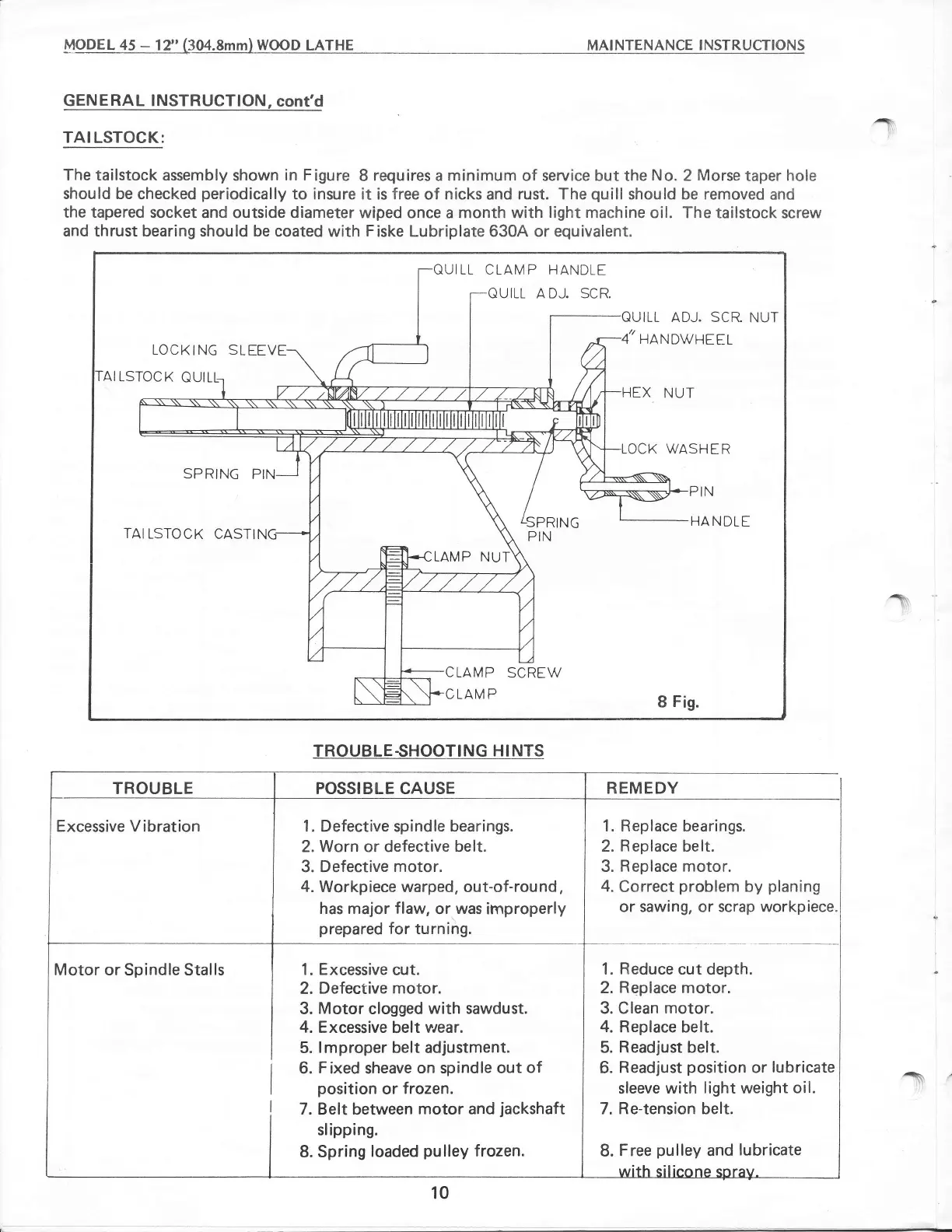

TAILSTOCK:
The tailstock assembly
shown
in Figure
8
requires a minimum of service but the No. 2
Morse
taper
hole
should be
checked
periodically
to insure
it is
free
of
nicks
and
rust. The
quill
should
be removed and
the tapered
socket and outside diameter wiped
once a
month with
light
machine oil. The
tailstock screw
and
thrust
bearing
should
be
coated with
Fiske
Lubriplate 6304 or equivalent.
OUI LL C
LAM
P HANDLE
n n r
qaE)
UILL
ILL ADJ. SCR.
NUT
,,
HANDWHEEL
LOCKING SLEEVE
AILSTOCK
QUILT
EX
NUT
OCK WASHER
SPRING
PIN
HANDLE
TAILSTOCK
CASTI
CLAMP
SCREW
CTAMP
I
Fig.
TROUBLE-SHOOTI
NG HI NTS
.T
TROUBLE POSSIBLE CAUSE
REMEDY
Excessive Vibration 1. Defective spindle
bearings.
2. Worn or defective belt.
3. Defective
motor.
4.
Workpiece warped, out-of-round,
has major flaw,
or
was
improperly
prepared
for
turning.
1. Replace bearings.
2.
Replace
belt.
3. Replace motor.
4.
Correct
problem
by
planing
or sawing,
or
scrap workpiece
Motor or
Spindle Stalls
1. Excessive
cut.
2.
Defective motor.
3.
Motor
clogged
with
sawdust.
4.
Excessive
belt
vrear.
5.
lmproper belt
adjustment.
6.
F
ixed sheave
on spindle out
of
position
or
frozen.
7.
Belt between
motor and
jackshaft
slipping.
8. Spring
loaded
pulley
frozen.
1. Reduce cut depth.
2, Replace motor.
3. Clean
motor.
4.
Replace belt.
5.
Readjust
belt.
6.
Readjust
position
or
lubricate
sleeve
with light weight
oil.
7, Re-tension belt.
8.
Free
pulley
and
lubricate
with cilicnnp cnrrv
10
\/
