第 12 页 共 16 页
Mode
Parameter
Default
Rang Comment
5 5 0 0~4
Trimming counting mode selection:
0: no counting
1: Counting up according to stitch number, after reaching set value
then restart.
2: Counting down according to stitch number, after reaching set
value then restart.
3: Counting up according to stitch number, after reaching set value,
then motor should stop automatically, recounting should be restart
by S4 [152.INI] =CRS or the button A on operation panel.
4: Counting down according to stitch number, after reaching set
value, motor should stop automatically, recounting should be restart
by S4 [152.INI] =CRS or the button A on operation panel.
61 0 0／1／2
Translating Parameter
0：no action
1：Download parameters( the panel will parameter from panel
to controller )
2：Upload parameters ( the panel will parameter from
controller to panel)
6 2 0 1, 2, XXXX
Restore storage parameter(Only restore parameters to
operators, and vendors and maintenance )
Belt flat 1000/ Direct drive flat 2000
6 3 0 1, 2
Backup current parameter as user parameter for restore
(restore)
Operatio
n
Note: Above such “6x "parameter to operate is not saved.

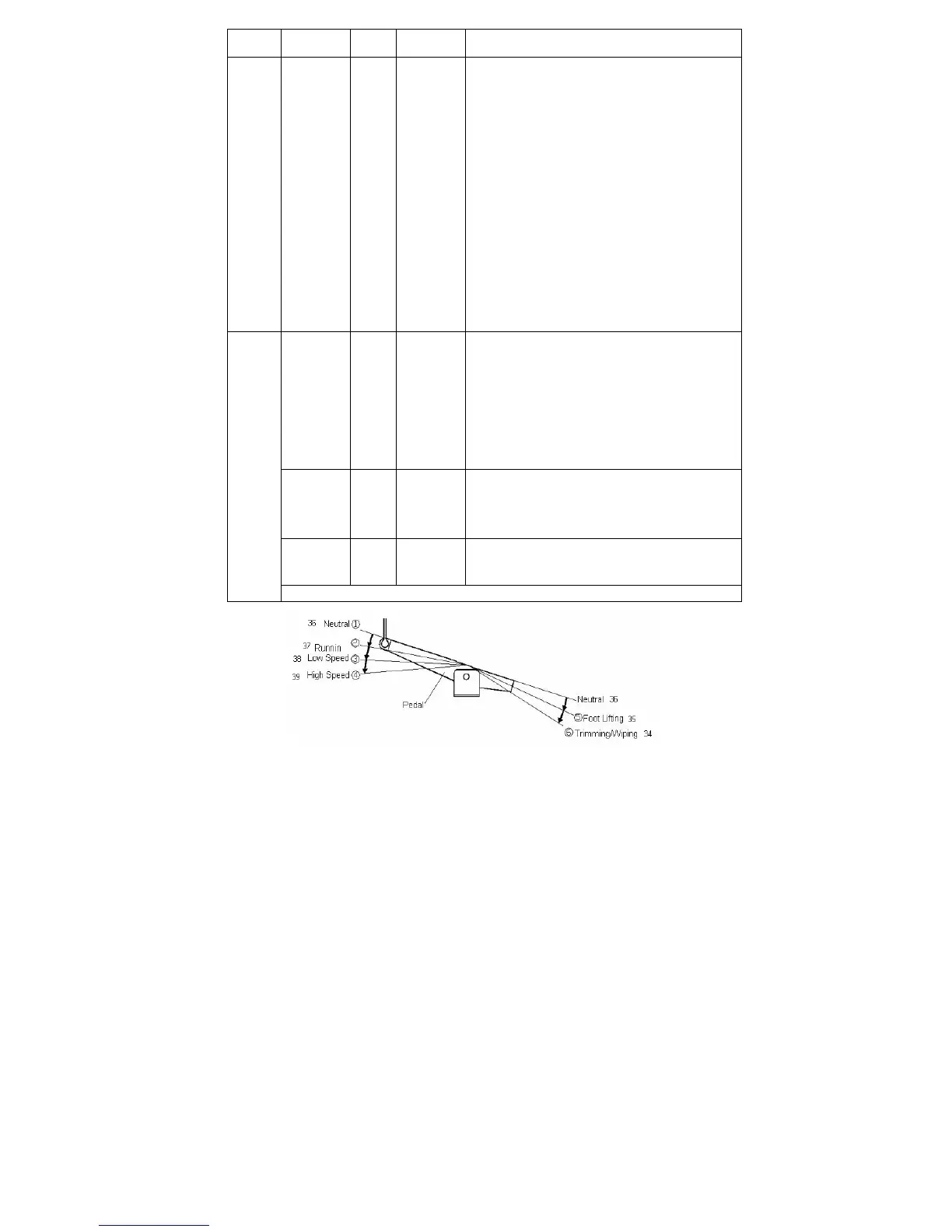

Fig.3-1 Pedal action parameter the position of the diagram
