20
ASSEMBLY INSTRUCTIONS
Step 5:
5a: Locate the engine and pump assembly and remove the two hold down bolts.
5b: Place motor/pump assembly onto the engine plate located on the tank assembly.
5c: For the 25T and 30T models
Locate (4) M8 x 40 bolts, (8) #8 flat washer, (4) #8 lock washers and (4) M8 nuts, from the hardware kit.
For the 35T models
Locate the (4) M10 x 45 bolts, (8) #10 flat washer, (4) #10 lock washers and (4) M10 nuts, from the hardware kit.

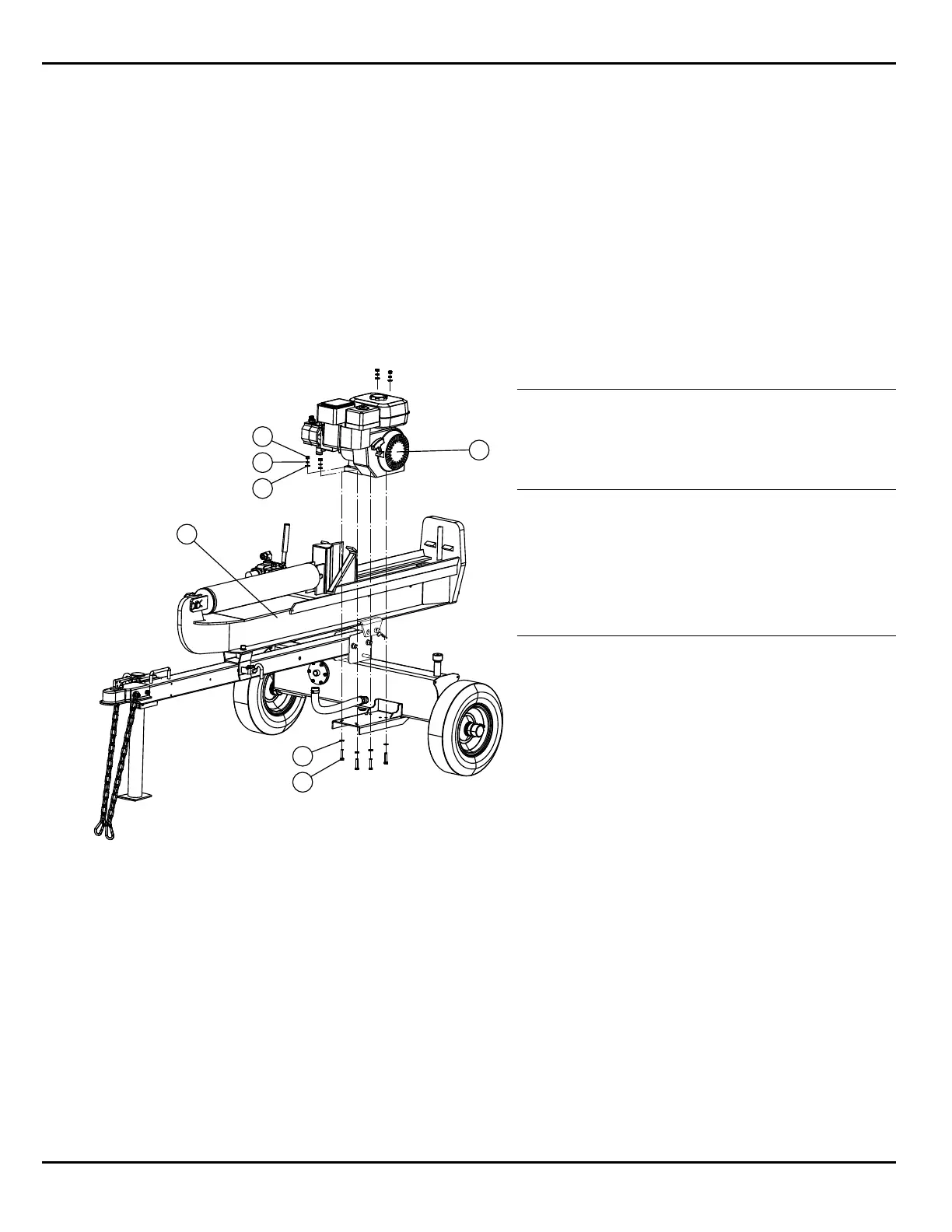

5d: Install as shown and tighten.
1
2
4
3
6
5
4
Item
Description Quantity
1 Log Splitter Assembly 1
2 Engine and Pump Assembly 1
25T & 30T
3 M8 x 40 Bolt 4
4 M8 Flat Washer 8
5 M8 Lock Washer 4
6 M8 Nut 4
35T
3 M10 x 45 Bolt 4
4 M10 Flat Washer 8
5 M10 Lock Washer 4
6 M10 Nut 4
