Powersmart MB7109A - Exploded View and Parts List

1

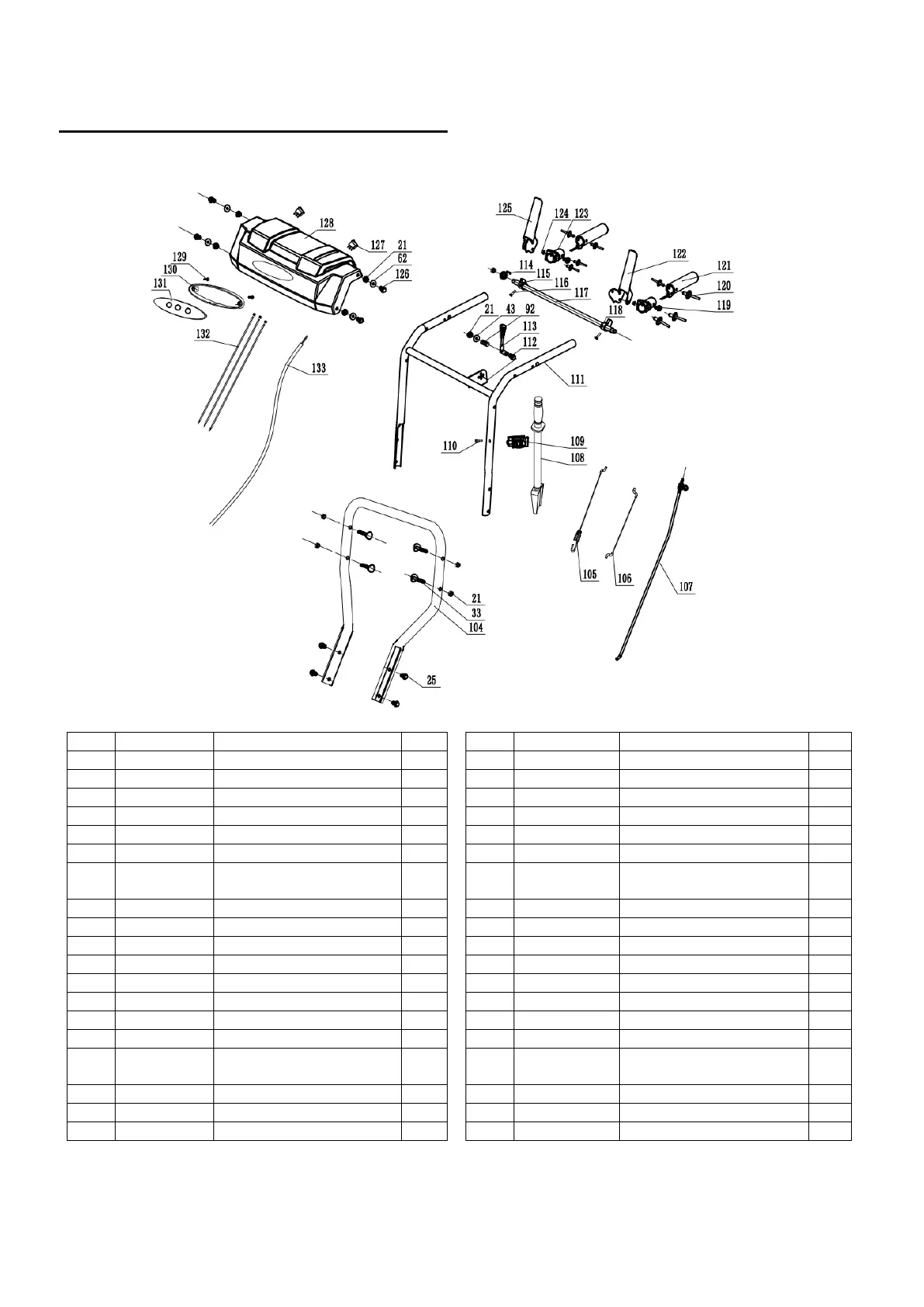

EXPLODED VIEW AND PARTS LIST
PANEL ASSEMBLY
Item
Stock#
Description
Qty
Item
Stock#
Description
Qty
25
303020498
Hex Bolt
4
117
303170030
Shaft
1
104
303160942
Lower Handle
1
118
303060157
Left self locking cam
1
33
303020154
Bolt
4
119
303020486
Outer hexagon flange bolt
2
21
303030077
Flange Lock Nut M8
4
120
306110042
Rivet
8
105
303200152
Upper Auger Cable
1
121
203070005
Heated handle
2
106
303200153
Upper Drive Cable
1
122
303071518
Left control trigger
1
107 202580001
Speed Control Connection
Rod
1 123 203050682 Self locking seat 2
108
203050057
Clean Out Tool
1
124
303030025
Nut M6
2
109
203050512
Rocker Seat
1
125
303071520
Right control trigger
1
110
303010164
Screw M6×20
1
126
303020275
Bolt M8X40
4
111
303181463
Upper Handle Welding
1
62
303042004
Flat gasket
4
112
303020654
Bolt
1
21
303030077
Flange Lock Nut M8
4
113
203010976
Control Handle
1
127
301100037
Switch
2
92
303130369
Spring
1
128
202030118
Panel
1
43
303042023
Flat Washer
1
129
303010159
Screw
2
21 303030077 Flange Lock Nut M8 2 130 203050561
Transparent lampshade
back cover
1
114
303071499
Self locking torsion spring
1
131
202500003
Lamp board
1
115
303060158
Right self locking cam
1
132
301040130
Connecting line
3
116
303020559
Bolt M5×16
2
133
301040136B
Connecting line
1
