DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX

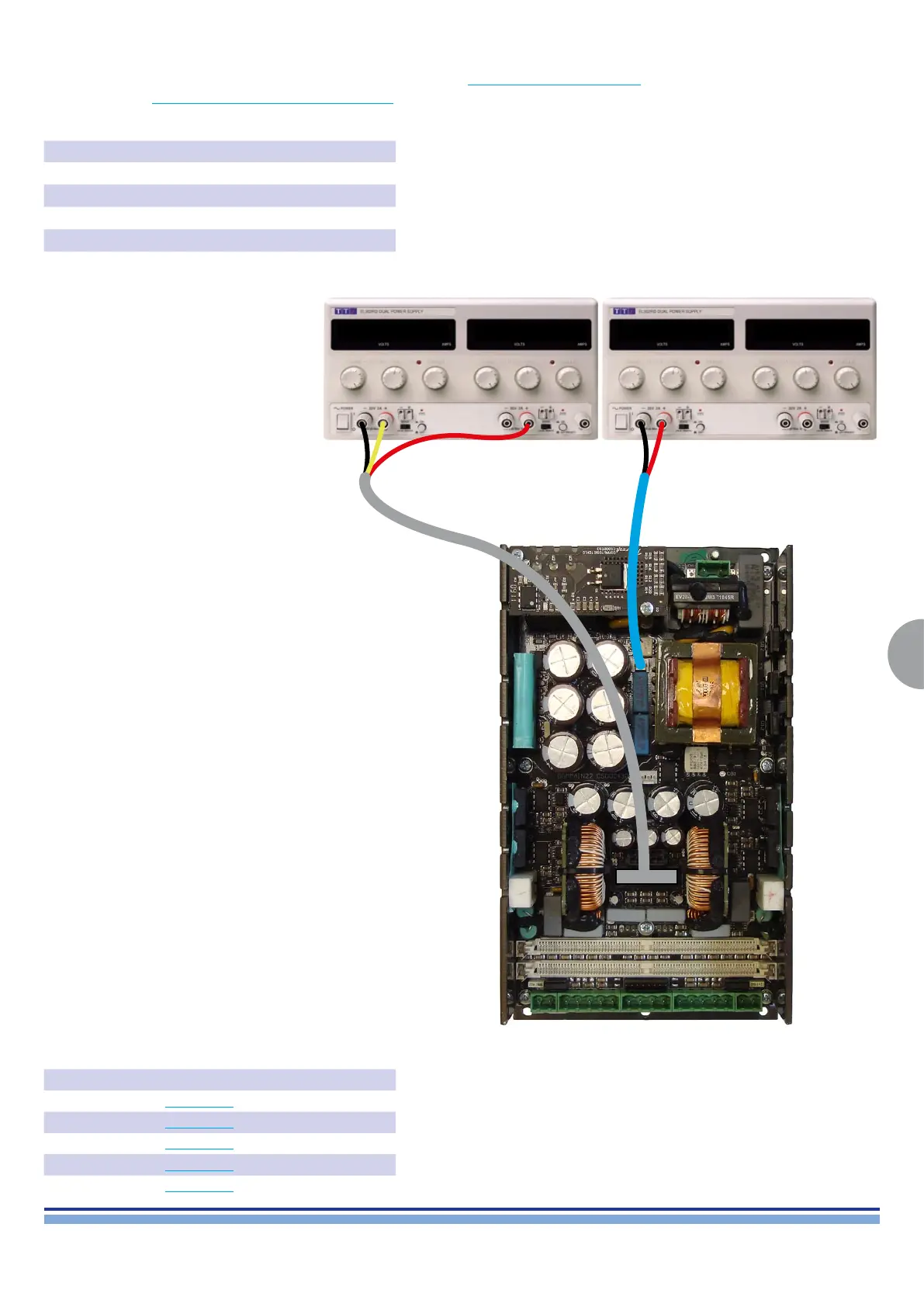

Connect a DC Power supply to the CN4 connector by means of the PSU AUX VOLTAGE CABLE, and supply +18 Vdc.
By means of the DIGIMOD AMP AUX VOLTAGE CABLE, connect a second power supply and set the output voltage to ± 15Vdc, and
check the absorption: it should be as portrayed in the table below.
Model +15V Consumption -15V Consumption
DigiMod 500
230 mA
± 10% 70 mA ± 10%
DigiMod 1000
300 mA
± 10% 70 mA ± 10%
DigiMod 1500
300 mA
± 10% 70 mA ± 10%
DigiMod 2000HV
300 mA
± 10% 70 mA ± 10%
18Vdc 20mA +15Vdc -15Vdc
Model Kit Number Description
DigiMod 500
KT000819.R KIT DM500 AMP 1CH
DigiMod 1000
KT000821.R KIT DM1000 AMP 1CH
DigiMod 1000NPS
KT000822.R KIT DM1000NPS AMP 1CH
DigiMod 1500
KT000824.R KIT DM1500 AMP 1CH
DigiMod 2000
KT000827.R KIT DM2000 AMP 1CH
In case of any faults in the aforementioned components,
please refer to the table below when ordering the Repair Kit.
