powersoft DigiMod 500 How To Connect

▶
4
How To Connect a DigiMod 1000NPS to a DigiMod 500

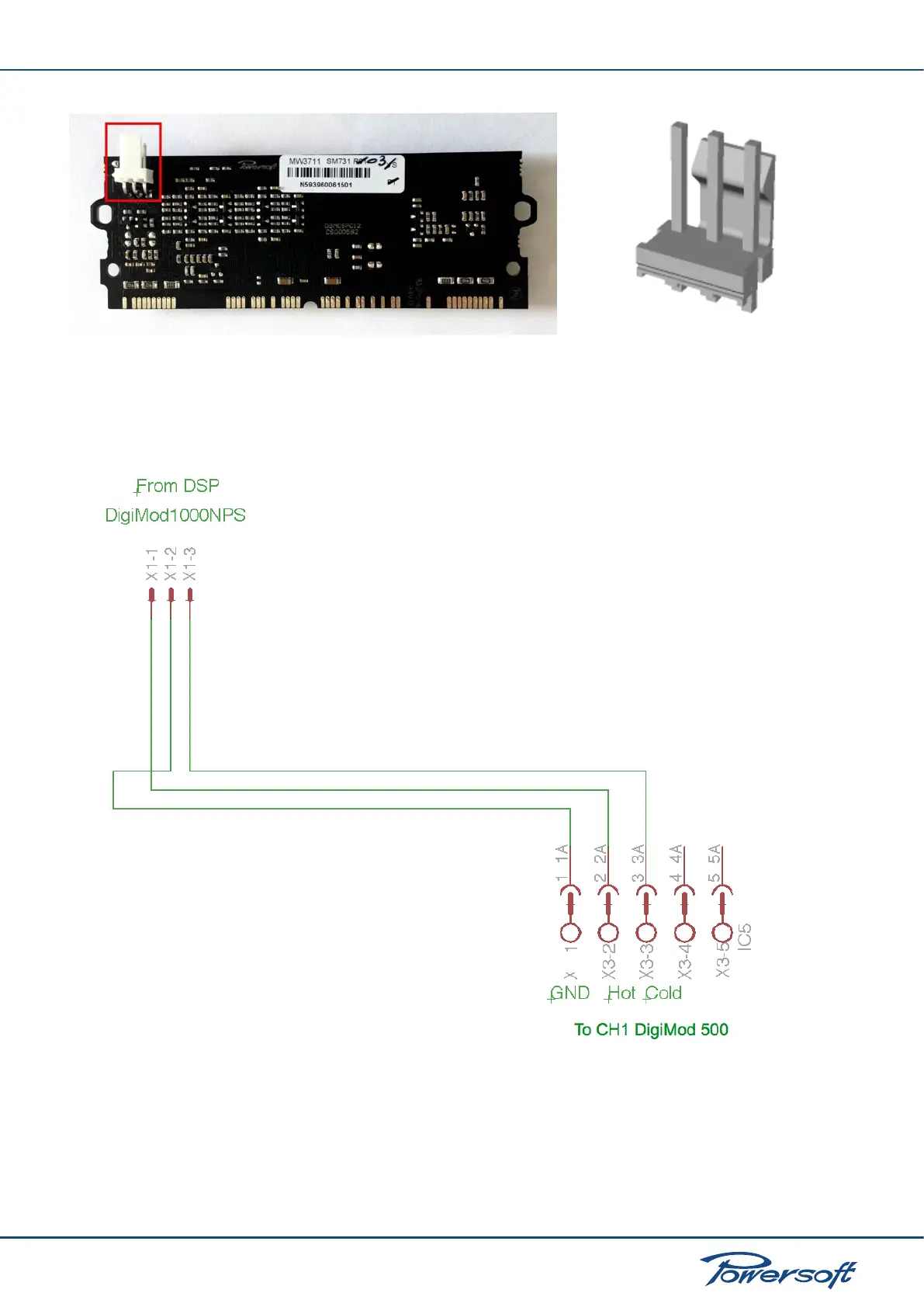

FIGURE 6: DSP with soldered MOLEX connector and three pin male MOLEX connector
3. Make the following cable so it connects DSP output channels 3 and 4 from the MOLEX connector to the DigiMod 1000NPS Phoenix
inputs. The cable will be balanced, low impedance and will have the following connectors:
▶
1 3-pin female MOLEX
▶
2 5-pin male Phoenix
4. Use the gure below as a connector pin soldering diagram.
FIGURE 7: Connector pin diagram
5-pin male Phoenix
Pin 1: GND
PIn 2: Hot Pole
Pin 3: Cold Pole
Pins 4 & 5: unused
3-pin female MOLEX connector:
Pin 1: Cold pole
Pin 2: GND
Pin 3: Hot pole
