DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX
+15Vdc -15Vdc

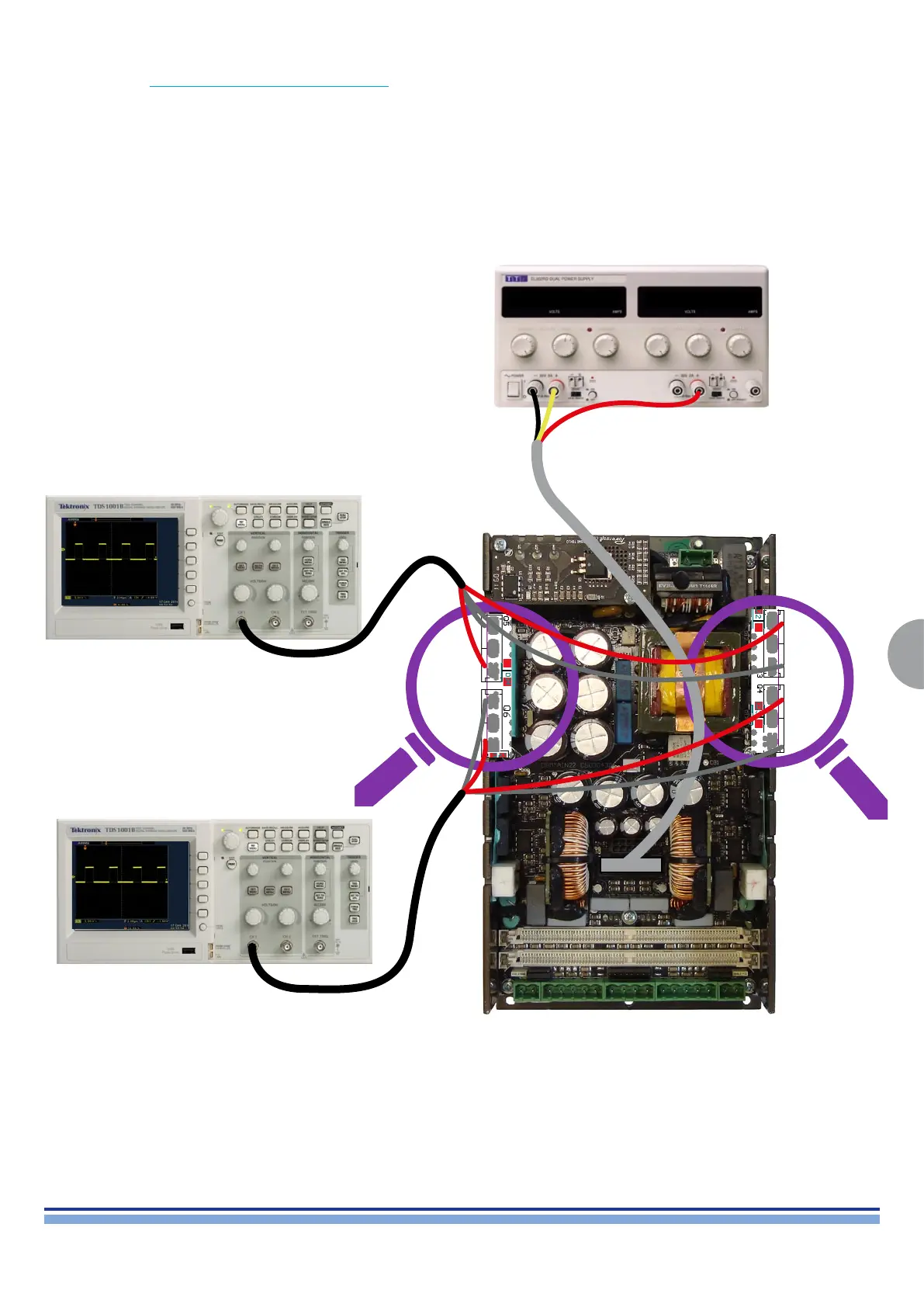

By means of the DIGIMOD AMP AUX VOLTAGE CABLE, connect a DC power supply and set the output voltage to ± 15Vdc.
Check the shape of the waveforms by probing the highlighted pins on the Q3, Q4, Q5, Q6 Mosfets.
The waveforms should be shaped as portrayed in the figure below.
To Next Page
