PowerTech PC170 User Manual

2.2.2 CLOSE DELAY OF DUAL GATE OPERATION ADJUSTMENT (DIP 3.DELAY1, DIP 4.DELAY2)
Close/Open delay of two leaves of gate can be adjusted from 2 to 6 seconds
OFF
ON
OFF
ON
Dip3. Delay 1 Dip4. Delay 2
OFF
OFF
ON
ON
2 sec
2 sec
3 sec
3 sec
3 sec
4 sec
5 sec
6 sec
DIP switch
Open Delay Close Delay
2.2.5 OPERATION SPEED ADJUSTMENT OF THE GEAR MOTORS (DIP 7.O SPEED)
ON: The speed is 100% output of the full speed.
OFF: The speed is 70% output of the full speed.
2.2.6 SINGLE AND DUAL GATE OPERATION ADJUSTMENT (DIP 8.DS/SET)
ON: Dual Gates operation in system learning and normal operation.
OFF: Single Gate operation in system learning and normal operation.
2.2.3 ELECTRIC LATCH ADJUSTMENT (DIP 5.LATCH)
ON: The master leaf will move toward closing direction for 0.25 second once command the remote, then unlock the
latch to open the gate.
OFF: Once command the remote, the the latch will be unlocked to open the gate immediately
2.2.4 DECELARATION SPEED ADJUSTMENT OF THE GEAR MOTORS (DIP 6. D SPEED)
ON: The speed is 70% output of the full speed.
OFF: The speed is 50% output of the full speed.

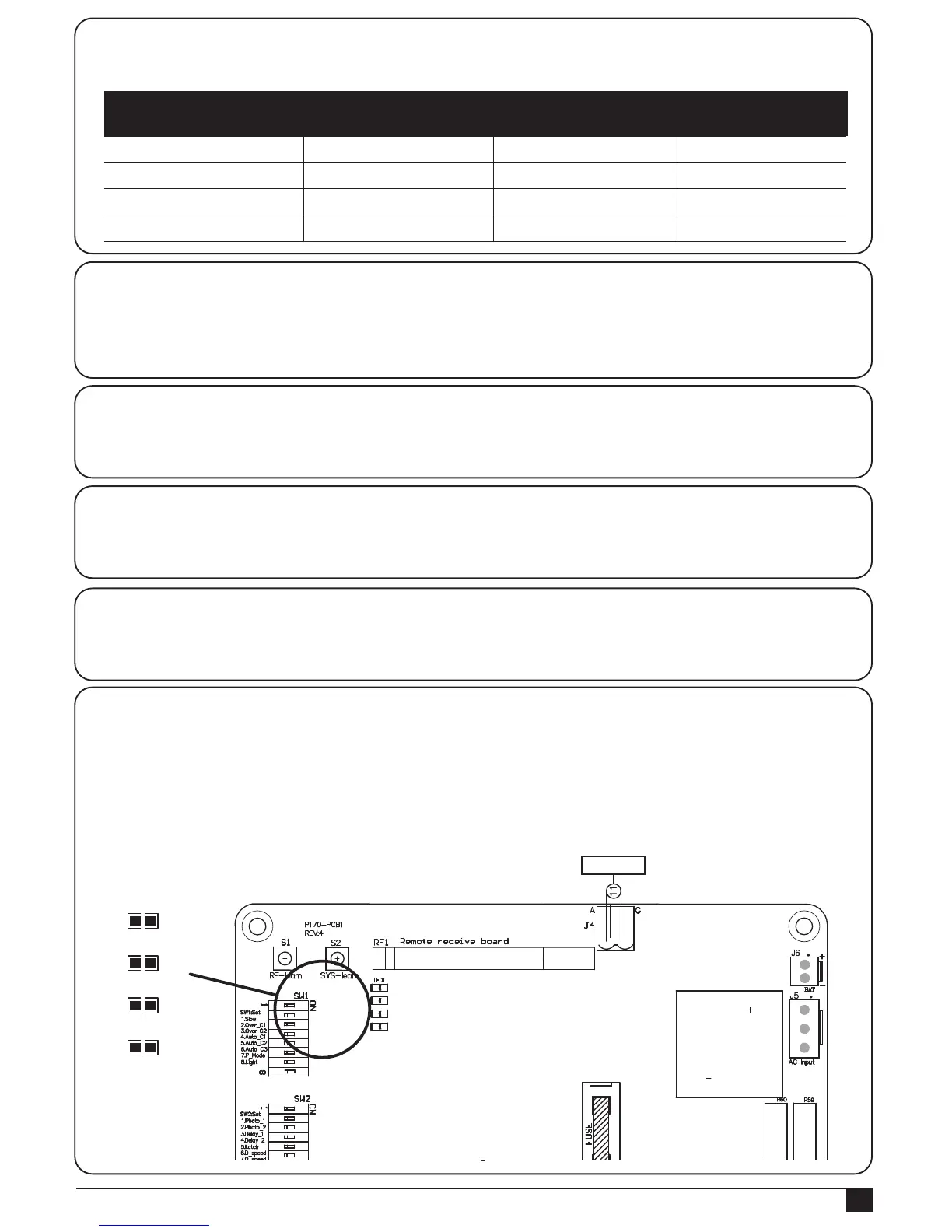

2.3 LED INDICATION
LED1 System Learning: LED1 is always ON when the system learning in not completed.
LED1 blinks once when single-gate learning is completed ;
LED1 blinks twice when dual-gate learning is completed.
LED2 RF : If the switch of the transmitter, key selector, or the push button is activated, LED2 will be on.
LED3 Photocells 1 : LED3 will be on when the first pair of the photocells are activated.
LED4 Photocells 2 : LED4 will be on when the second pair of the photocells are activated.
LED5 RF Indicator : LED5 will be on when RF signal is received.
Antenna
LED1
LED2
LED3
LED4
LED1
LED2
LED3
LED4
SYSlearn
RFLED
Ph01
Ph02
CONTROL BOX
5
