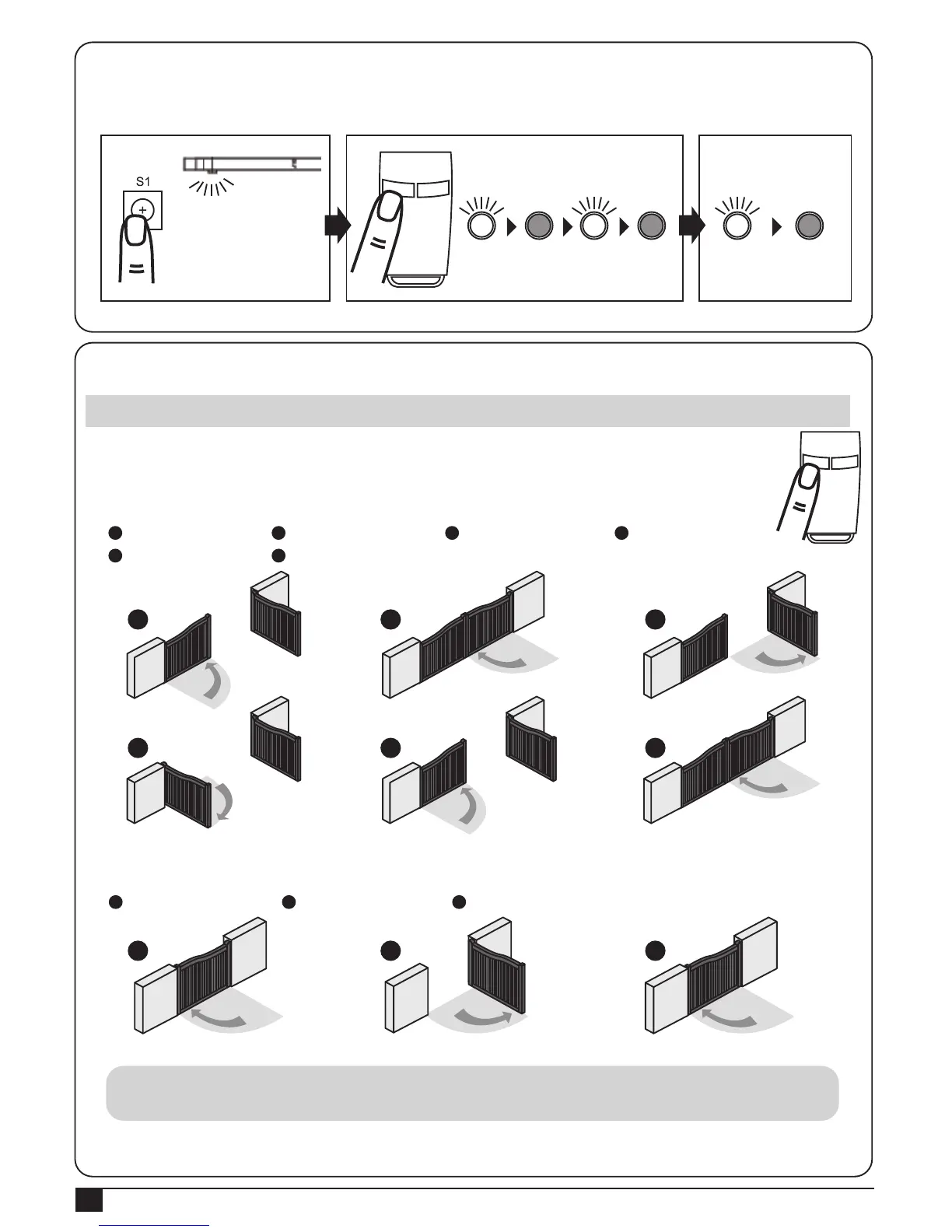

2.5 SYSTEM LEARNING PROCESS
Press “SYS-learn” button for 2 seconds, after press button (A) on the remote. System learning
will be executed step by step as followings: Wait for the learning process to be completed
without any interruption.
A. Dual Gate:
Slave Gate Close → Master Gate Close → Master Gate Open → Slave Gate Open →
Slave Gate Close → Master Gate Close
B. Single Gate :
Master Gate Close → Master Gate Open → Master Gate Close
1
1
5
2 3
1 2 3
4
6
2 3
1 2 3
4 5 6
! CAUTION: Before proceeding to system learning, the transmitter memorizing process has to be completed.
! Beware: The system learning process for single gate takes more than dual gate for
around 1 min, wait for the gate to complete the learning process.
A
B
A
B
2.4 TRANSMITTER MEMORIZING PROCESS
Press “RF-learn” button for 2 seconds, and the Blue LED is on; then press the transmitter (A) button;
the Blue LED will blink twice and then be off. The system learning is complete.
Blue LED blinks twice
Blue LED OFF
Blue LED ON
2 Sec
RF-Learn
