INSTRUCTIONS PW320/PW330
10
Figure 25 Figure 25.1 Figure 25.2
Figure 26
Figure 27 Figure 28
Figure 29 Figure 30 Figure 31
14. Fasten the nut tightly and loosen it for half round for motor supporting in rotating.
15. Fasten the motor front end to the front plate with the bolt (A) and nut (B) tightly. Fully tighten the screw.
12. Lift up the motor and insert the screws into the front plate.

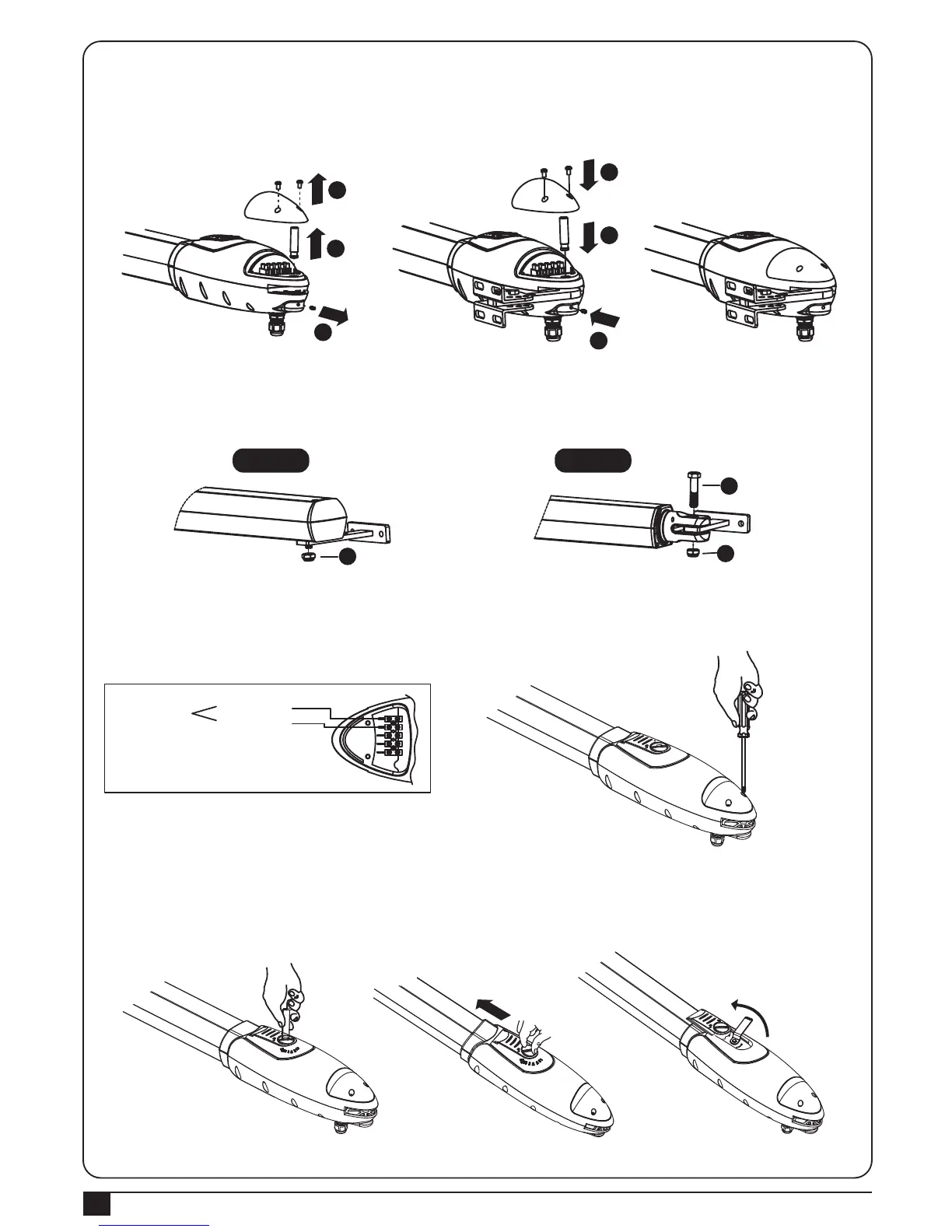

13. Open the gear motor cover and release the screw, then take out the bolt as below Figure25. Lift the motor
overhead and push the gate to the end until the screw holes of the motor end matches the holes on the rear plate
as shown in Figure 25.1 and fasten the motor to the rear plate with bolt and screw as shown in Figure25.2.
21. Connect the motor power cable as shown in Figure27.
22. Close the gear motor cover by tightening the two screws as shown in Figure28.
23. Gear Motor Release
1) Turn the round plate on the release part to “OPEN” position. See Figure 29.
2) Push out the release part to the end. See Figure 30.
3) Use the release key to turn the pin anti-clockwise to the end. See Figure 31.
