INSTRUCTIONS PW320/PW330
4

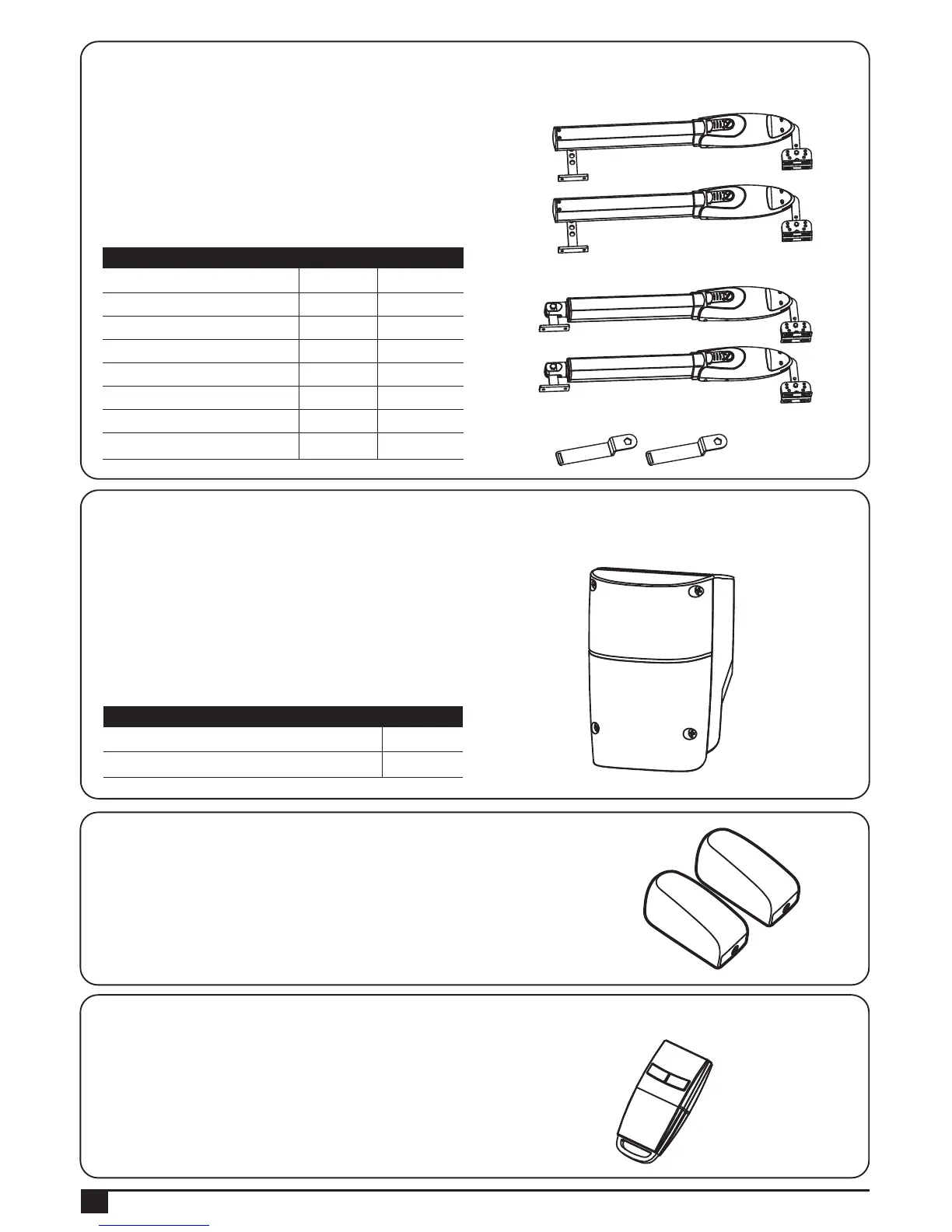

1.3.1 PW320/PW330 Electromechanical Gear Motors
PW320/PW330 consists of a worm screw reduction
gear and a 24V direct current motor. The gear motor
could be released manually by special release keys
when there is a power failure.
The gear motor is installed with two post brackets, one
rear plate and one front plate for the installation.
1.3.2 Control Box
Front plate 2pcs 2pcs
Rear plate 4pcs 2pcs
Post bracket 4pcs 4pcs
M8*25L hex bolt 4pcs 4pcs
M8 self-locking nut 2pcs 4pcs
M12 *25L hex bolt 0 2pcs
M12 self-locking nut 2pcs 2pcs
Release key 2pcs 2pcs
Table 1: List of small parts PW320 PW330
5*30 Screw 4 pcs
Nylon screw anchor 4 pcs
Table 2: List of small parts for Control Box Quantity
Figure 3
Figure 4
Figure 5
Figure 6
1.3.3 PH-2 Photocells
The pair of PH-2 photocells has to be installed on the
wall and connected to the control panel. The function of
the photocells is to detect the obstacles found on the
optical axis between the transmitter (TX) and the
receiver (RX).
1.3.4 PR-1 Radio Transmitter
PR-1 radio transmitter is used for the remote control of
the gate movement. To use the transmitter, press and
hold the button for 1 second. There are two buttons on
the transmitter and (A) button is “open-stop-close
mode” and (B) button is “pedestrian mode”.
1)PW320
2)PW330
3)Release Key
Control box consists of one control panel with
incorporated receiver, one transformer and two back-up
batteries.
Provides the complete automation of the gear motors
and other accessories of PW320/PW330 kit.
To connect separate terminals on the control panel and
activate the gear motors and other accessories, the
installation manual has to be carefully read beforehand.
TX
RX
