INSTRUCTIONS PW320/PW330/PW330L
8

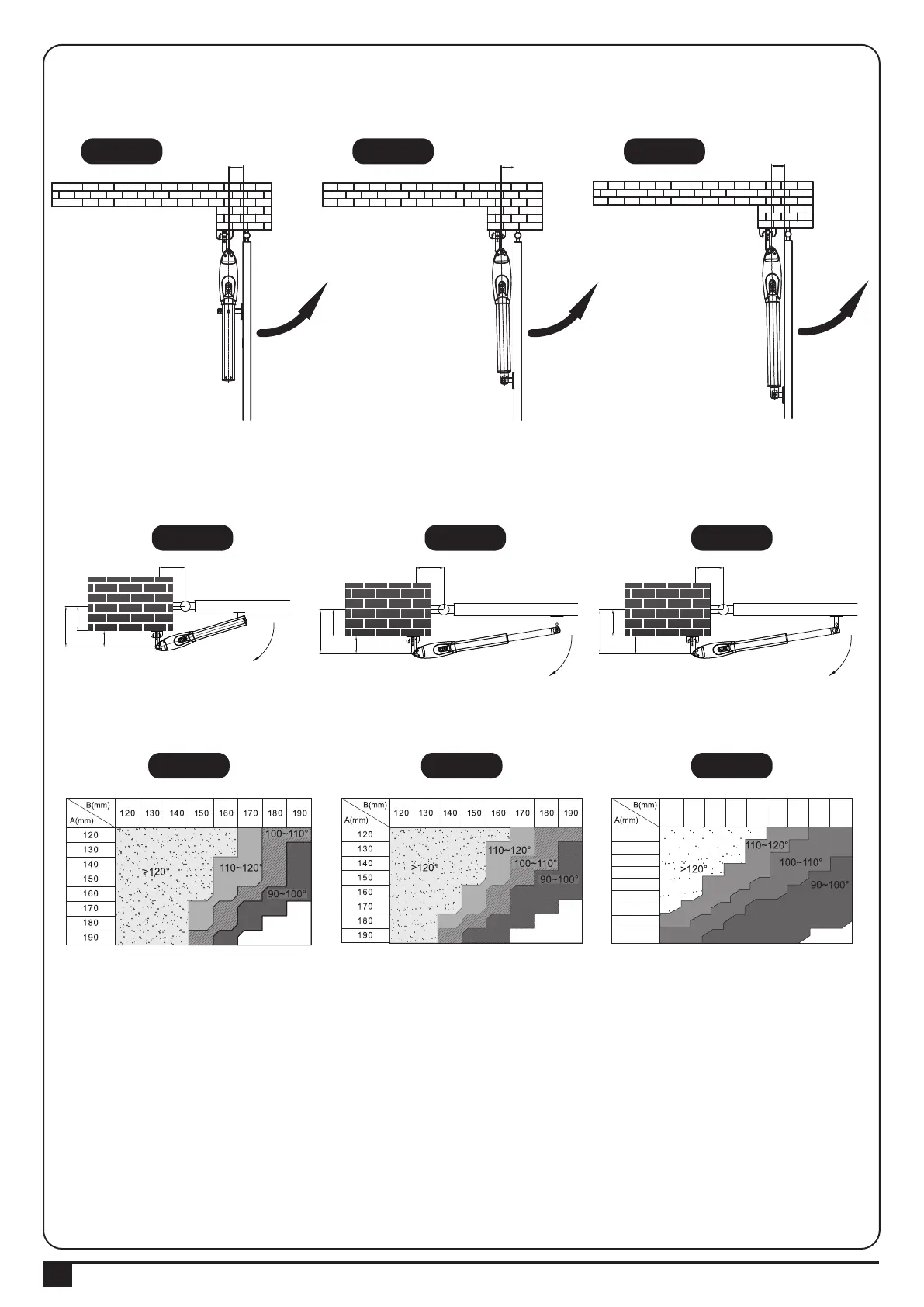

Figure 16 (Aerial View)
Figure 17
Figure 15 (Aerial View)
10) . Using the leaf-opening angle as criteria to make sure all criteria in Figure 17 can be met.
11). “C” value is 139mm.
12). “D” can be measured from the gate easily.
13). “A” = “C” + “D”
14). The value of “B” can be calculated from the value of “A” and the leaves opening angle. Ex. If “A”=160mm with
the leaves opening angle of 100 degrees, then the value of “B” is approximate 190mm.
**Please make sure “B” and “A” are similar or the same in value that the leaves can be operated smoothly,
also to reduce the burden of the motor.
9). If the gate is OPENED OUTWARD, please leave at least 70mm between the post brackets and the gate.
Min
70mm
Min
70mm
Min
70mm
PW320
PW330 PW330L
PW320
PW330 PW330L
PW320
PW330 PW330L
230
240
250
260
270
280
290
300
310
180 190 200 210 220 230 240 250 260
A
D
C
B
A
D
C
B
A
D
C
B
To Next Page
