Powerware 9120 - UPS Rear Panels; 700 VA, 120 V; 1000 VA, 120 V; 1500 VA, 120 V

Installation
6
Powerware
®
9120 User's Guide  05147426 A Uncontrolled Copy

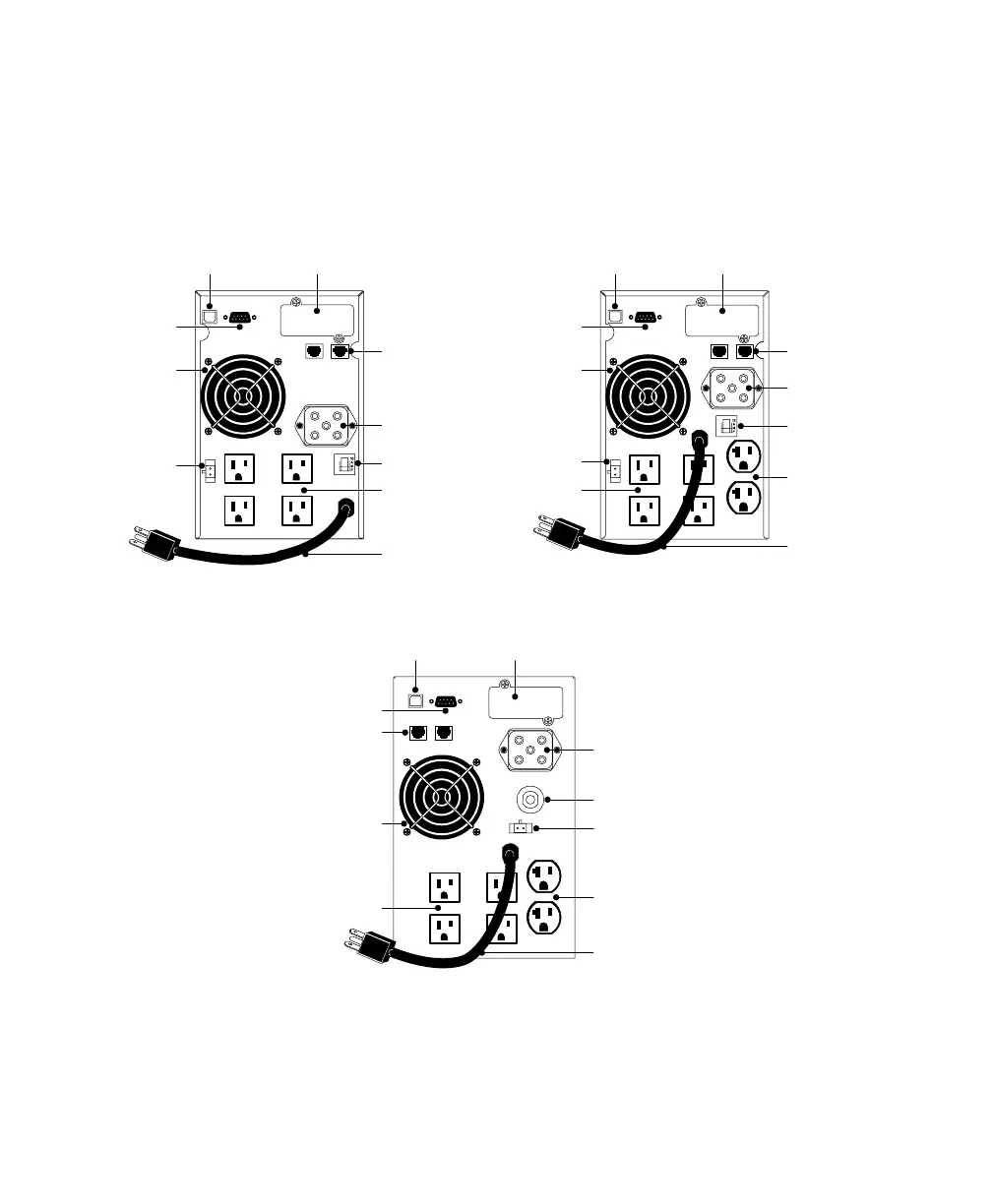

UPS Rear Panels
This section shows the rear panels of the Powerware 9120
plug/receptacle models.
Network
Transient
Protector
Communication
Port
Communication SlotUSB Port
6-ft Power Cord
with 515 Plug
REPO Port
Four 515
Receptacles
Battery
Connector
Circuit
Breaker
Fan
700 VA, 120V
Network
Transient
Protector
Communication
Port
Communication SlotUSB Port
Fan
Two 5-20
Receptacles
Battery
Connector
Circuit
Breaker
REPO Port
6-ft Power Cord
with 515 Plug
Four 515
Receptacles
1000 VA, 120V
Communication SlotUSB Port
Communication Port
Network Transient
Protector
Fan
Four 515 Receptacles
Two 5-20
Receptacles
REPO Port
Circuit Breaker
Battery
Connector
6-ft Power Cord
with 515 Plug
1500 VA, 120V
