MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
2.2.2 External Wiring
Notes:
 Wiring for High/Low burners only
 Wiring for modulation burners only

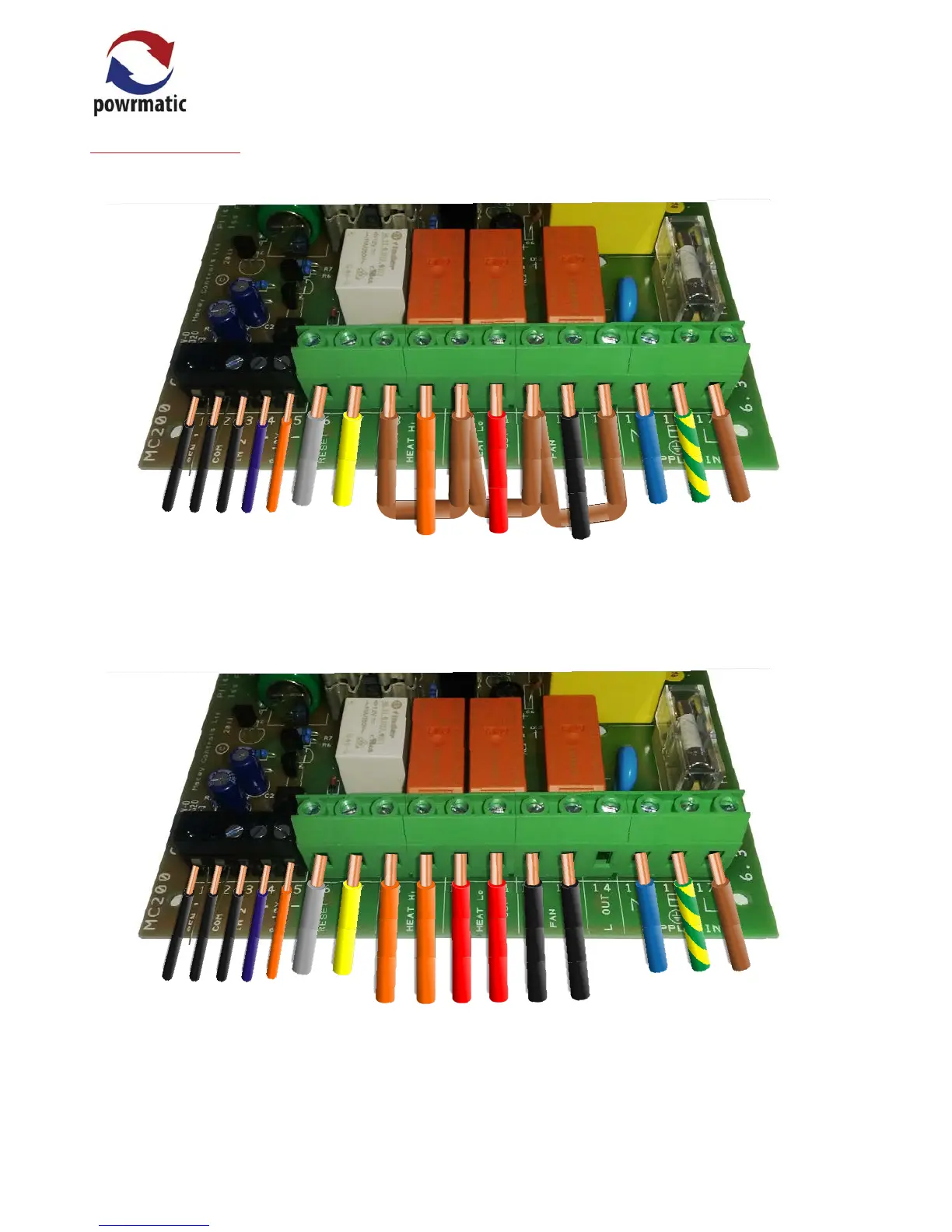

2.2.2.1 Wiring details for current Powrmatic heaters utilising fused live output terminal 14 and detailing 'link' wires.
Fan Only
circuit
Low Heat
circuit
Lockout
Reset
0-10Vdc
0Vdc
IN2/Sen 2
COM⁄
Sen 2
NEUTRAL
EARTH
LIVE
High Heat
circuit
Fan Only
Low Heat
Lockout
Reset
0-10Vdc
0Vdc
IN2/Sen 2
COM⁄
Sen 2
NEUTRAL
EARTH
LIVE
High Heat
2.2.2.2 Wiring details for older Powrmatic heaters utilising volt free heat and fan terminals
 Wiring for external remote sensor only
 Wiring for remore switch only
 Wiring for Burner Lockout heaters only
