10 PUCK-5 PS
Installation Instructions
5

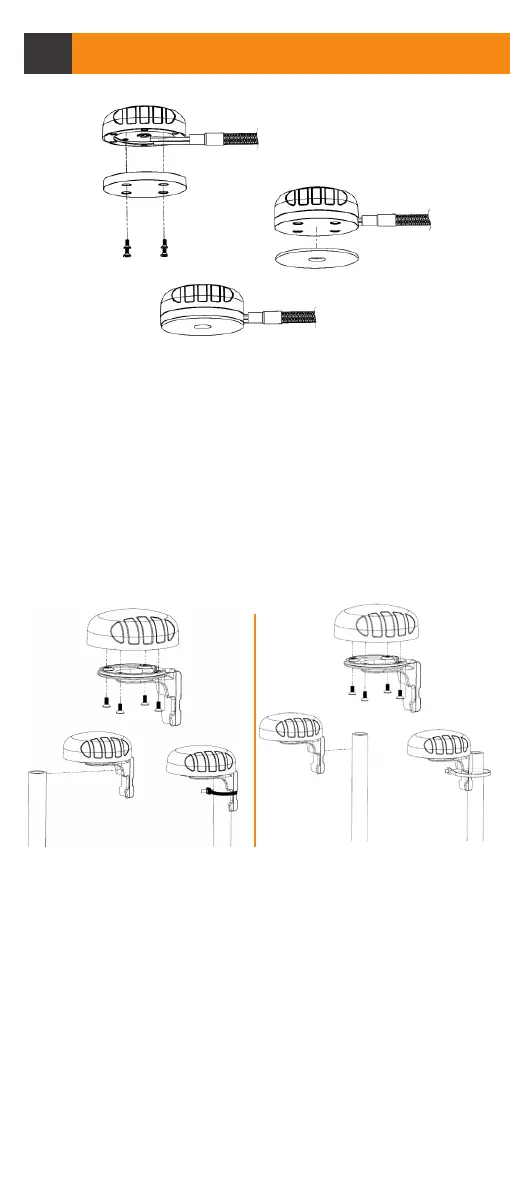

• Lay the antenna out at the installation site.
• Attach the bracket onto the base of the antenna
using 4 flat head screws.
• Secure the cable tie or hose clamp around the
bracket and pole until the bracket is secured to
the pole.
Pole Mounting
Vertical Pole Mounting
• Select a suitable place for mounting the antenna
• Using the wall mount bracket as a guide, mark two
points to drill on the wall. Use a Ø6mm masonry drill
bit to drill the marked points.
• Use a masonry drill bit to drill a cable entry hole to
t the connector.
• Place the bracket over the two holes and line up
the holes in the bracket with the holes in the wall.
• Insert the two knock-in screws to mount the bracket
to the wall.
Wall Mounting
Internal Pole Mount
External Pole Mount
