Poynting PUCK Series - Page 13

12

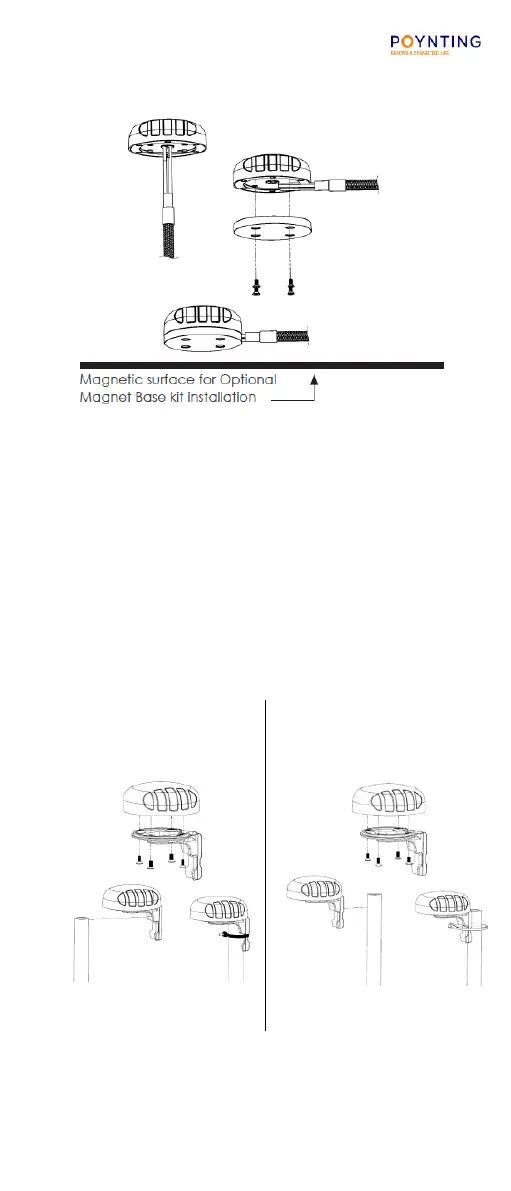

Antenna Configuration 4
Pole Mounting
• Lay the antenna out at the installation site.
• Attach the bracket onto on to the base of the
antenna using four Flat head screws.
• Secure the cable tie or hose clamp around the
bracket and pole until the bracket is secured to
the pole.
Vertical Pole Mounting
Internal Pole Mount
External Pole Mount
