Version: 3.0 7
Introduction
3
XPOL-1 is a unique window, wall or pole mount-
able, high gain, CPE antenna. It can be mount-
ed outdoors on a pole of up to 50mm in diam-
eter, against a window or against a wall. Follow
the instructions below for installation.
Mounting Congurations:
1. Wall Mounting
• Select a suitable place for mounting the
antenna.

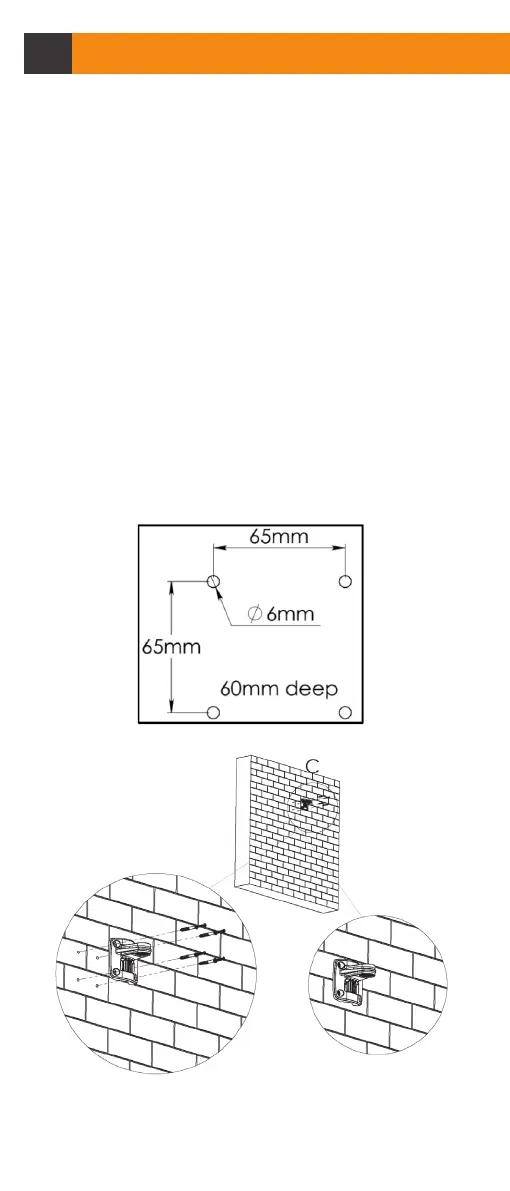

• Use a 6mm masonry drill bit to drill four holes
into the wall. See the dimensions below.
• Place the bracket over the four holes and
line up the holes in the bracket with the holes
in the wall. Place the four knock-in screws to
mount the bracket to the wall.
