Version: 3.0 9
Introduction
3

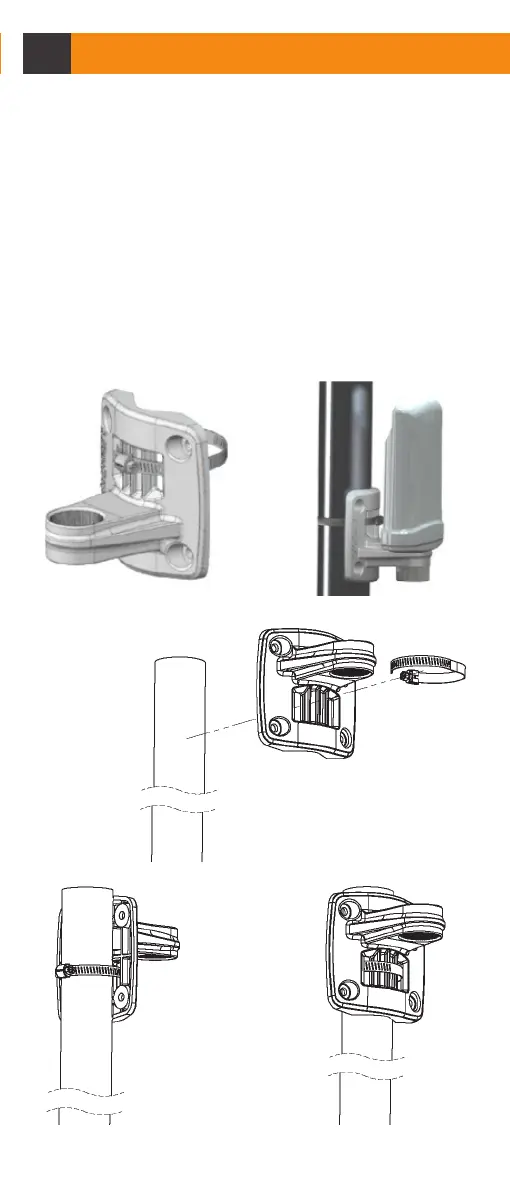

3. Pole Mounting
• Lay the antenna out at the installation site
and assemble the antenna on the ground.
• Place the pipe clamp through the bracket as
shown below.
• Next place the cable clamp around the pole
and tighten the screw on the cable clamp
until the bracket is secured to the pole.
• Mount the antenna so that there is at least 1
meter of clearance in all directions around
it and unobstructed line of sight to the cell
tower’s strongest signal.
