PPA Agility Hibrida - Impact Sensor Configuration; Setting Encoder Pulse as Impact Reference

43

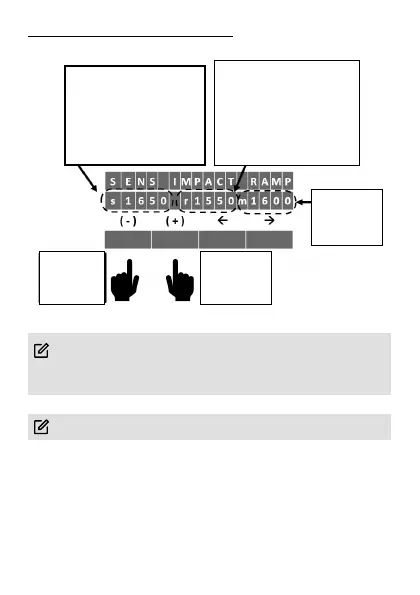

Ramp / travel impact sensor setting screens
Setting the encoder pulse as an impact reference
Reference value for activating
the impact protection.
S: 1400 → Reference value
= 1400 *
250 microseconds = 350
milliseconds
Disabled = OFF
Minimum reference = 20
Maximum Reference = 9900
Actual value of the encoder pulse
width when the gate is moving.
R:2032 → Actual value = 2032 *
250 microseconds = 508
milliseconds
When the actual value exceeds
the reference value, the gate
movement is reversed for
protection.
Decreases
the reference
value
Increases the
reference value
Maximum
value showed
in the encoder
reading (ramp
or course)
NOTES WHEN THERE IS AN IMPACT PROTECTION:
• During closing cycle: Total reversion until the opening limit switch.
• During opening cycle: Partial reversion for 5 seconds, just to release the
gate from the object.
NOTE: The same procedure can be used to course adjustment.
