PPA JETFLEX User Manual

4 5
Motor power supply Cable type and size
110V 1 PP cable - 2 x 2.5 mm
220V 1 PP cable - 2 x 2.5 mm
220V 1 PP three-phase cable - 3 x 2.5 mm
380V 1 PP three-phase cable - 4 x 2.5 mm
NOTE: If accessories are used, provide piping and cables as needed.
Provide a grounding rod that will be xed close to the body of the gate.
GENERAL FEATURES
• Universal cabinet that allows in󰏭alling the barrier arm on either side of
the barrier.
• Concealing sy󰏭em for manual unlocking (up to 4.5m).
• Electronic control unit with frequency inverter.
• Mechanical 󰏭op with height adju󰏭ment.
• Sy󰏭em activation through a gearmotor, pulleys, and belts.
• Galvanized 󰏭eel cabinet with anti-corrosion treatment and electro󰏭atic
painting guarantee excellent resi󰏭ance again󰏭 the action of time.
• Limit switch sy󰏭em with encoder.
• Electronic brake.
• Allows in󰏭alling several accessories (inductive loop, signal light,
photocell, pushbutton, etc.).
TECHNICAL SPECIFICATIONS
Non-󰏭op barrier (linear)
Barrier length Cycles/hour
Opening
time
(adju󰎣able)
Closing
time
(adju󰎣able)
Voltage Gearbox
2.5 to 3m 1200
0.7 second
(minimum)
0.7 second
(minimum)
127 and
220 V
Oil bath
method
Non-󰏭op barrier (articulated)
Barrier length Cycles/hour
Opening
time
(adju󰎣able)
Closing
time
(adju󰎣able)
Voltage Gearbox Barrier prole
3m (maximum) 580
0.7 second
(minimum)
0.7 second
(minimum)
127 and
220 V
Oil bath
method
Rectangular
60 x 30mm

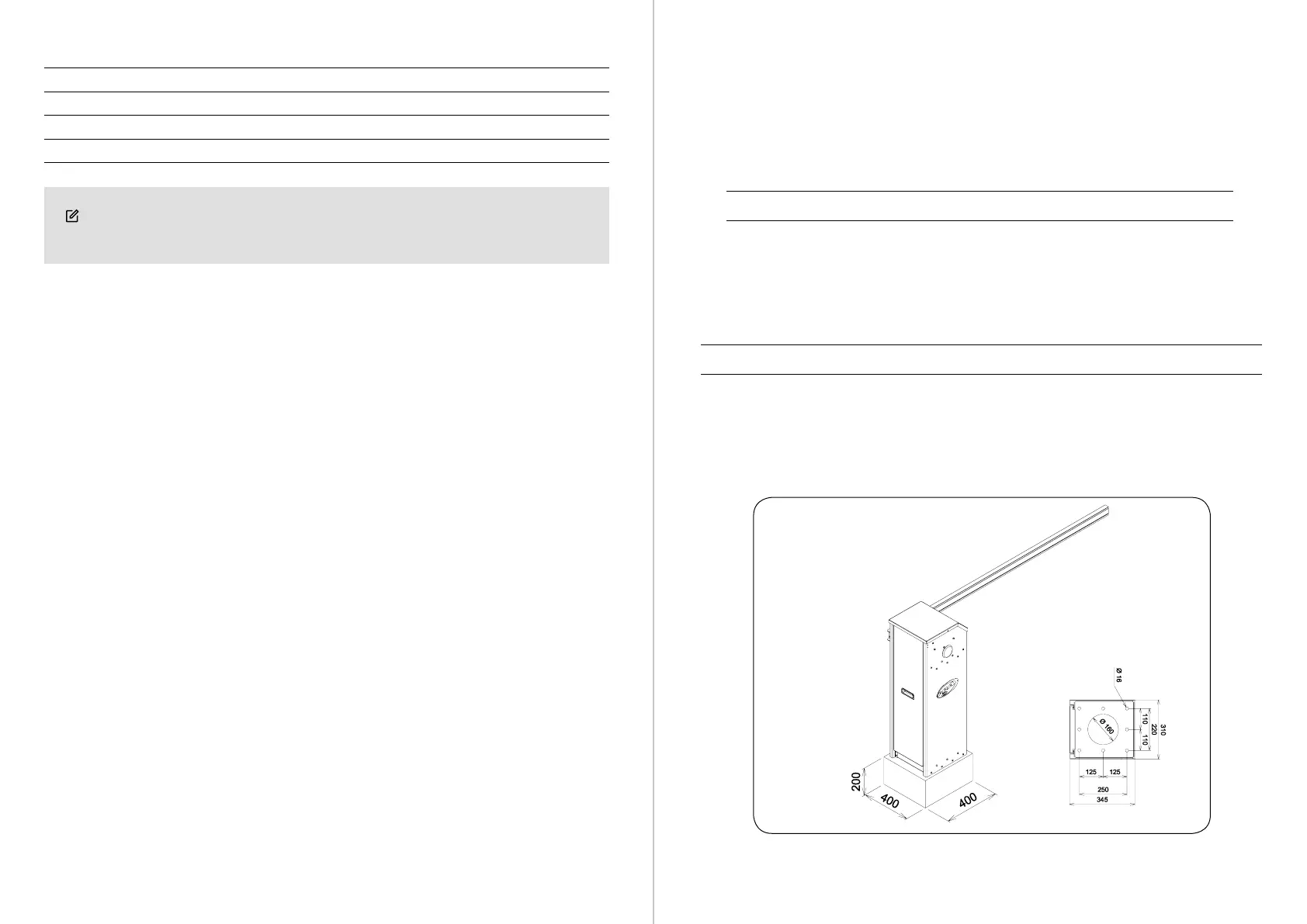

EQUIPMENT DIMENSIONS
FRONT OF THE BARRIER
INSPECTION DOOR
