6 7

OBS: Measurements in mm. The base plate mu󰏭 be leveled to allow the

equipment to perform better.

INSTALLING THE BARRIER

1. When xing the barrier, notice that the cabinet inspection door mu󰏭

face the side of the road or vehicle passage.

76 mm (3")

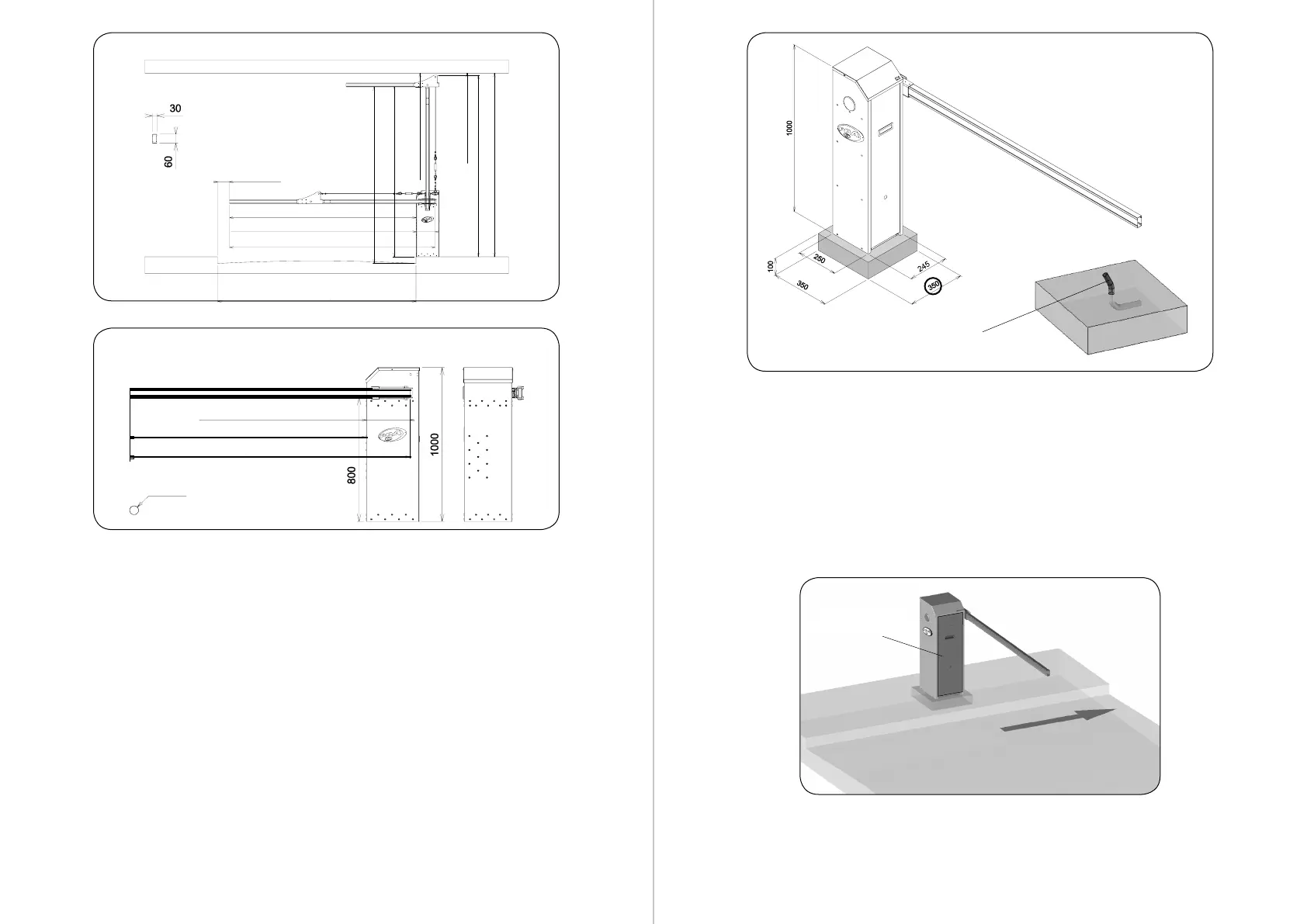

BUILDING THE BASE PLATE TO INSTALL THE

CABINET

Build a concrete base so that the highlighted direction (350) faces the curb

(󰏭reet, passing vehicles) according to the sugge󰏭ed dimensions.

Cover

Barrier Base

Articulated barrier prole

(EXTRA) 180 mm

USEFUL LENGTH = BARRIER LENGTH -180 mm

(BARRIER LENGTH + 110 mm)

(Ground clearance)

Barrier xing deduction 283 mm

Useful length = Barrier length -283 mm

Barrier length

¾” CONDUIT PIPE

(MINIMUM) FOR THE

CABLES POSITIONED IN

THE CENTER OF THE BASE

INSPECTION DOOR

VEHICLE PASSAGE

Linear barrier prole

CURB USEFUL HEIGHT

210 (OPENING DEDUCTION)

30 (SAFETY MARGIN)

OPEN BARRIER HEIGHT

DISTANCE FROM BARRIER BASE TO COVER

GROUND CLEARANCE AT BARRIER BASE

(FIXING – DEDUCT FROM THE BARRIER LENGTH 280 mm)
