2. Position / align the cabinet on the base and mark the holes so that the
front of the gate (inspection door side) faces the curb (reet, passage
of vehicles).
3. Remove the cabinet from the base and drill holes in the previously
marked locations.
OBS: Make 04 holes with a Ø10mm drill and at lea 80-mm deep.

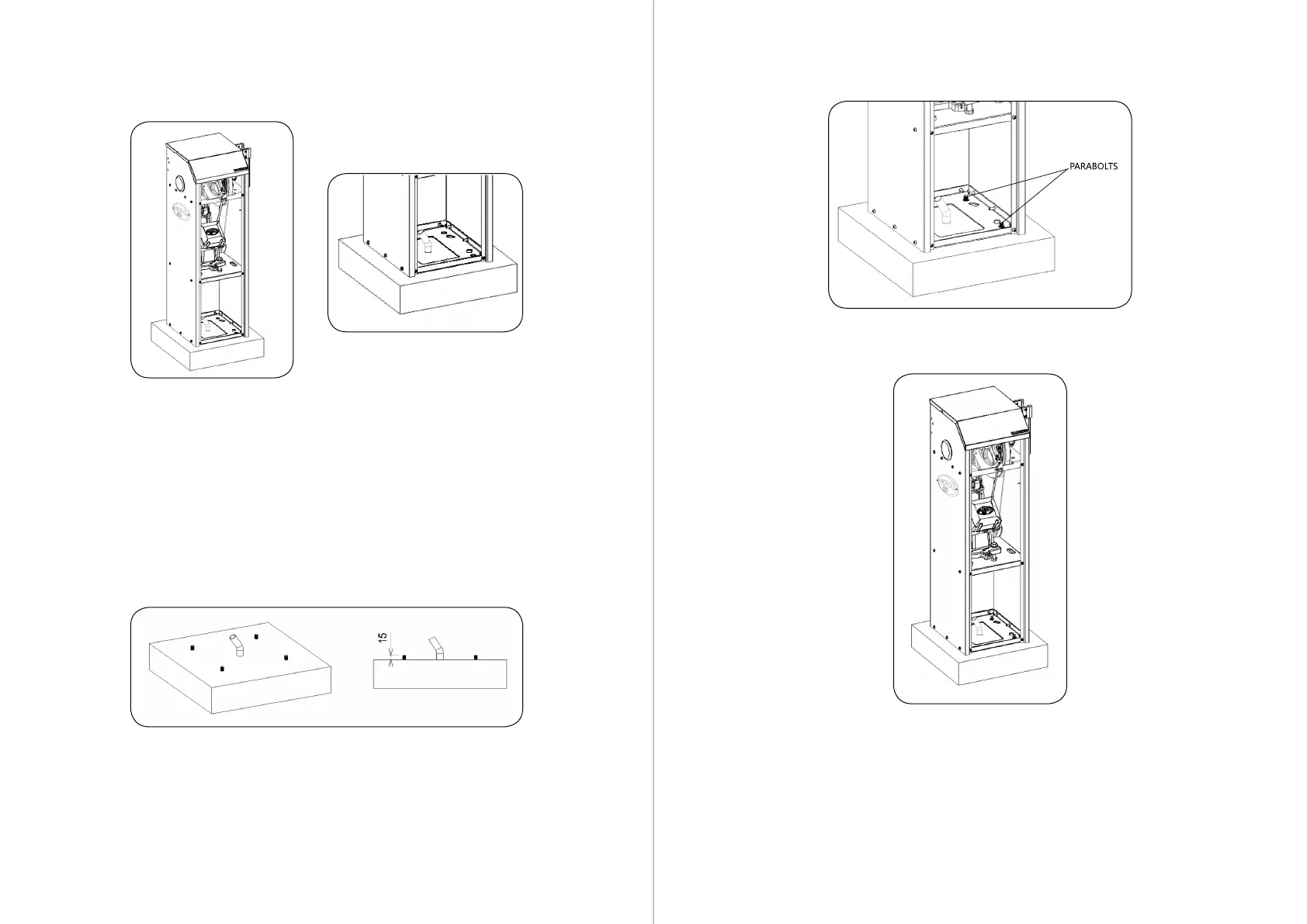

4. Insert the anchor bolts in the holes of the base, as shown below.
OBS: The anchor bolts mu not be inserted thoroughly. They mu be
approximately 15 mm above the base.
5. Position the cabinet over the base, and t the cabinet holes into the
anchor bolts
6. Recheck the cabinet alignment. If necessary, move it circularly as desired.
