3000V101-UK 9
MARKING

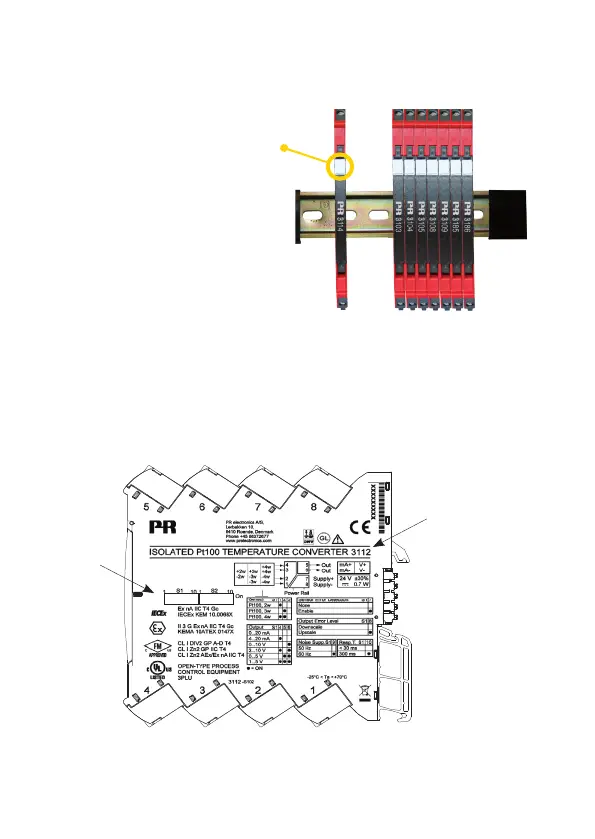

The hinged cover of the 3000 series
has a space designed to accept a
snap-on marker, which can be used to
identify individual units.
This space measures 5 x 7.5mm, and
markers from Weidmuller’s MultiCard
System, type MF 5/7.5, are suitable.
SIDE LABEL
DIP-switch
settings
Approvals
Pin
connections
Type no.
Terminal numbers
DIP sw.
