18 3000V101-UK

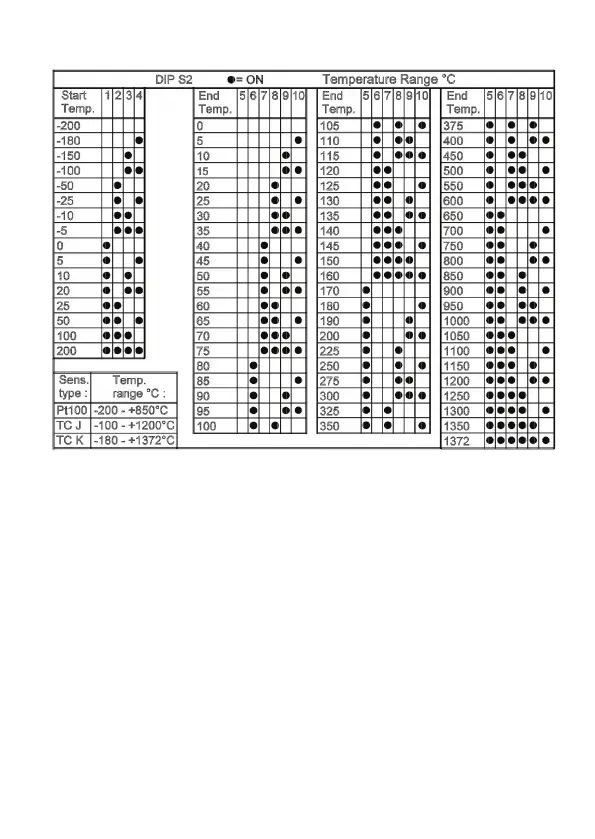

TEMPERATURE RANGE PROGRAMMING
Please note:
a. 3101 and 3111 - only TC input available
Valid TC J range: -100...+1200°C = correct DIP-switch setting
Valid TC K range: -180...+1372°C = correct DIP-switch setting
b. 3102, 3112 and 3333 - only Pt100 input available
Valid Pt100 range: -200...+850 °C = correct DIP-switch setting
c. ”Start temp” must be lower than ”End temp” = correct DIP-switch setting
d. Power must be cycled after DIP-switch positions are changed
