PR electronics 3101 Product Manual

3000V103-UK 17
Front led indications
For 3101, 3102, 3111, 3112 and 3113

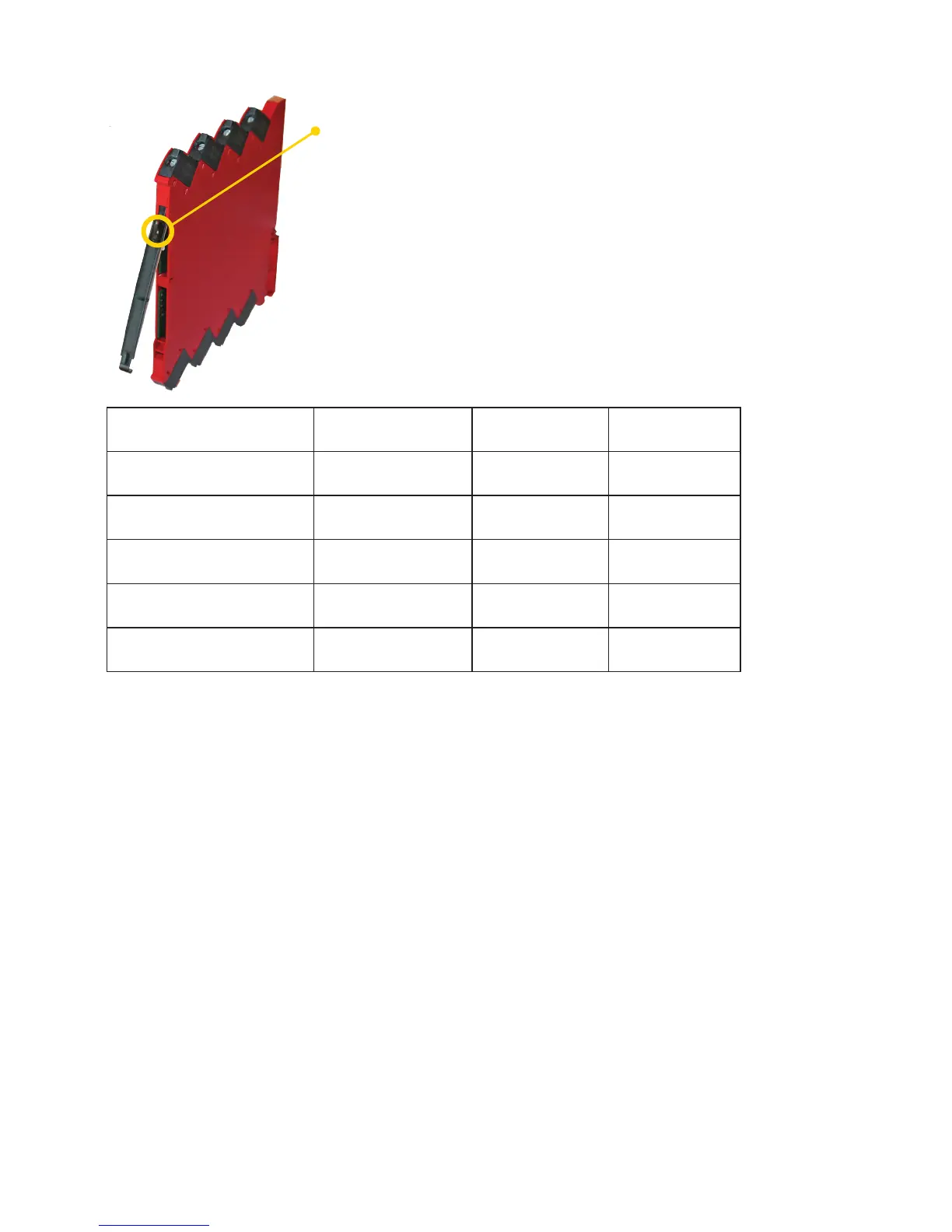

The device is equipped with a green power LED in the front to indicate the operation
status, see the table below.
Condition LED Output Action required
No supply / device error OFF De-energized
Connect supply /
replace device
Power-up or restart
1 Flash
(0.5 s OFF + 0.5 s ON)
De-energized -
Device OK
Flashing 13 Hz
(15 ms ON)
Energized -
Incorrect DIP-switch setting
Flashing 1 Hz
(500 ms ON)
De-energized
Correct setting and
re-power device
Sensor error indication
Flashing 1 Hz
(15 ms ON)
Up- or Downscale Check sensor
