PR electronics 3101 Product Manual

18 3000V103-UK

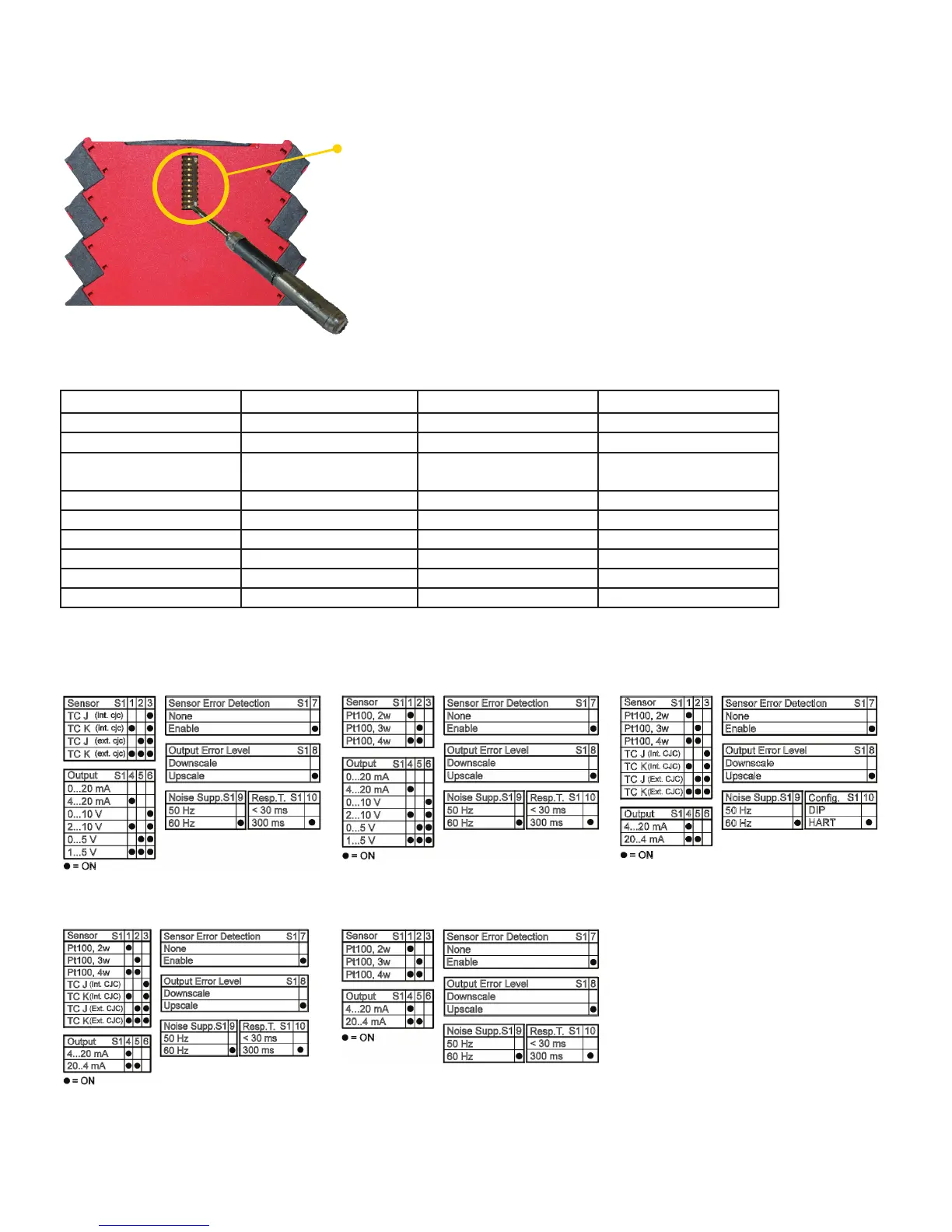

DIP-switch configuration
The devices can be configured via DIP-switches. The DIP-switches are located on the side of the device and can be adjusted
with a small screwdriver or other implement.
Default configurations
(Power must be cycled after DIP-switch positions are changed).
3102 and 3112
Pt100
3101 and 3111
TC J & K
*3101 - only int CJC
3331
Pt100 & TC J/K
3113 and 3337
Pt100 & TC J/K + HART
3333
Pt100
3102, 3112, 3331, 3333 3101, 3111 3113, 3337
Sensor type Pt100, 3 wire TC K (int. CJC) Pt100, 3 wire
Output range 4...20 mA 4...20 mA 4...20 mA
Error detection Short circuit detection
Broken circuit detection
Short circuit detection Short circuit detection
Broken circuit detection
Error output current 3.5 mA 3.5 mA 3.5 mA
Noise suppression 50 Hz 50 Hz 50 Hz
Input lower limit 0°C 0°C 0°C
Input upper limit 150°C 600°C 150°C
Response time < 30 ms < 30 ms < 60 ms
Configuration mode - - DIP switch configuration
