PR electronics 3101 Product Manual

3000V103-UK 9

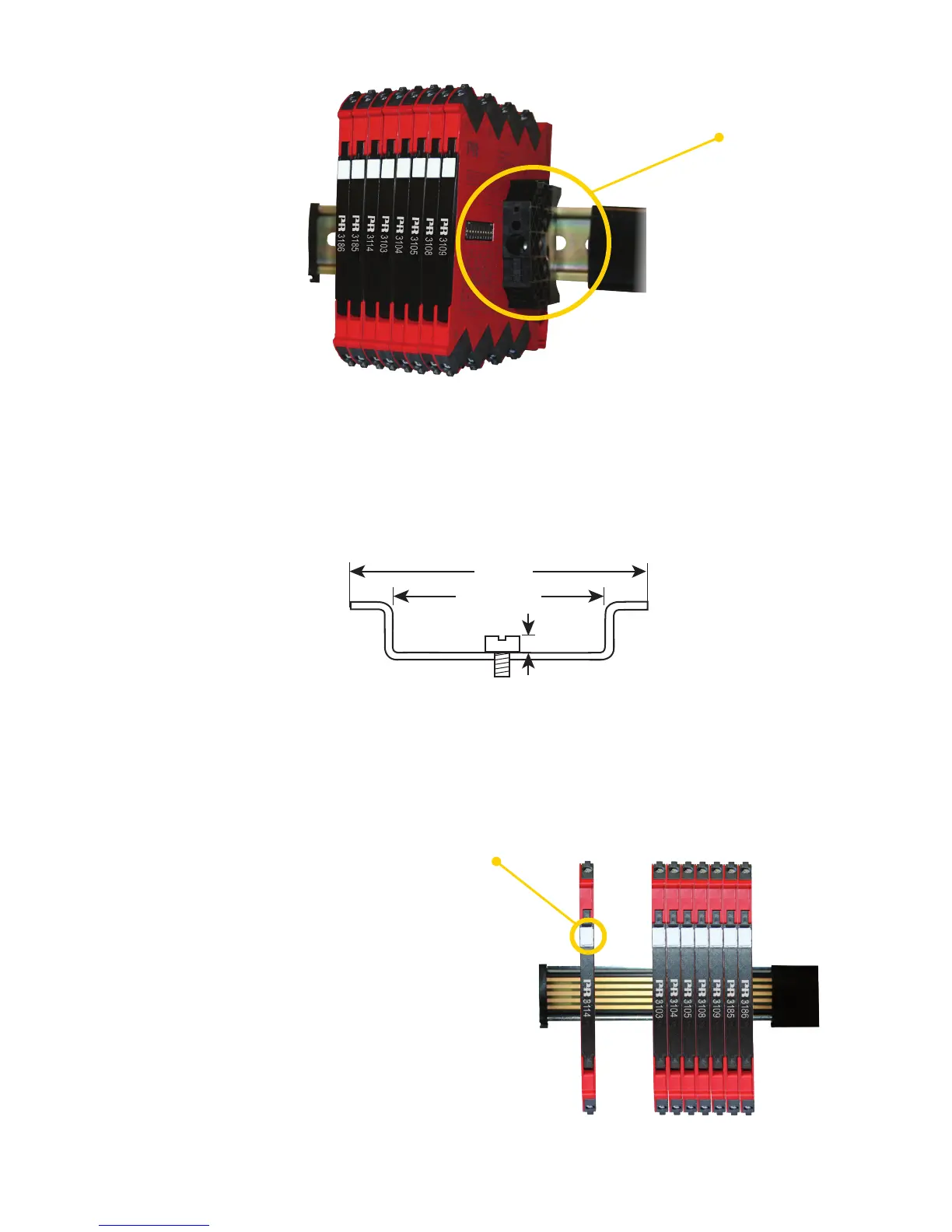

Installation on DIN rail / power rail
The devices in the 3000 series can be installed on a DIN rail or on a power rail (only 3111, 3112 and 3113). For marine
applications the devices must be supported by a module stop (PR part number 9404). Power supply units can be mounted on
the power rail according to customer requirements.
If you want to install a 3111, 3112 or 3113 device with power rail connectors on a standard DIN rail, the head of the screws
holding the 7.5 mm DIN rail shall be no more than 3.5 mm high in order to avoid short circuit between the power rail
connectors on the 3000 device and the screws.
Supply of power rail
It is possible to supply the power rail via the supply terminals.
The terminals can pass a current of max. 400 mA.
Marking
The front cover of the 3000 devices has been designed with
an area for affixation of a click-on marker. The area assigned
to the marker measures 5 x 7.5 mm. Markers from
Weidmüller’s MultiCard System, type MF 5/7.5, are suitable.
Module stop
< 3.5 mm
> 24 mm
35 mm
