PR electronics 9202 - Signal Error and Cable Fault Indications Without Display Front

16 9202- Product version 9202-003
Signal error and cable fault indications without display front

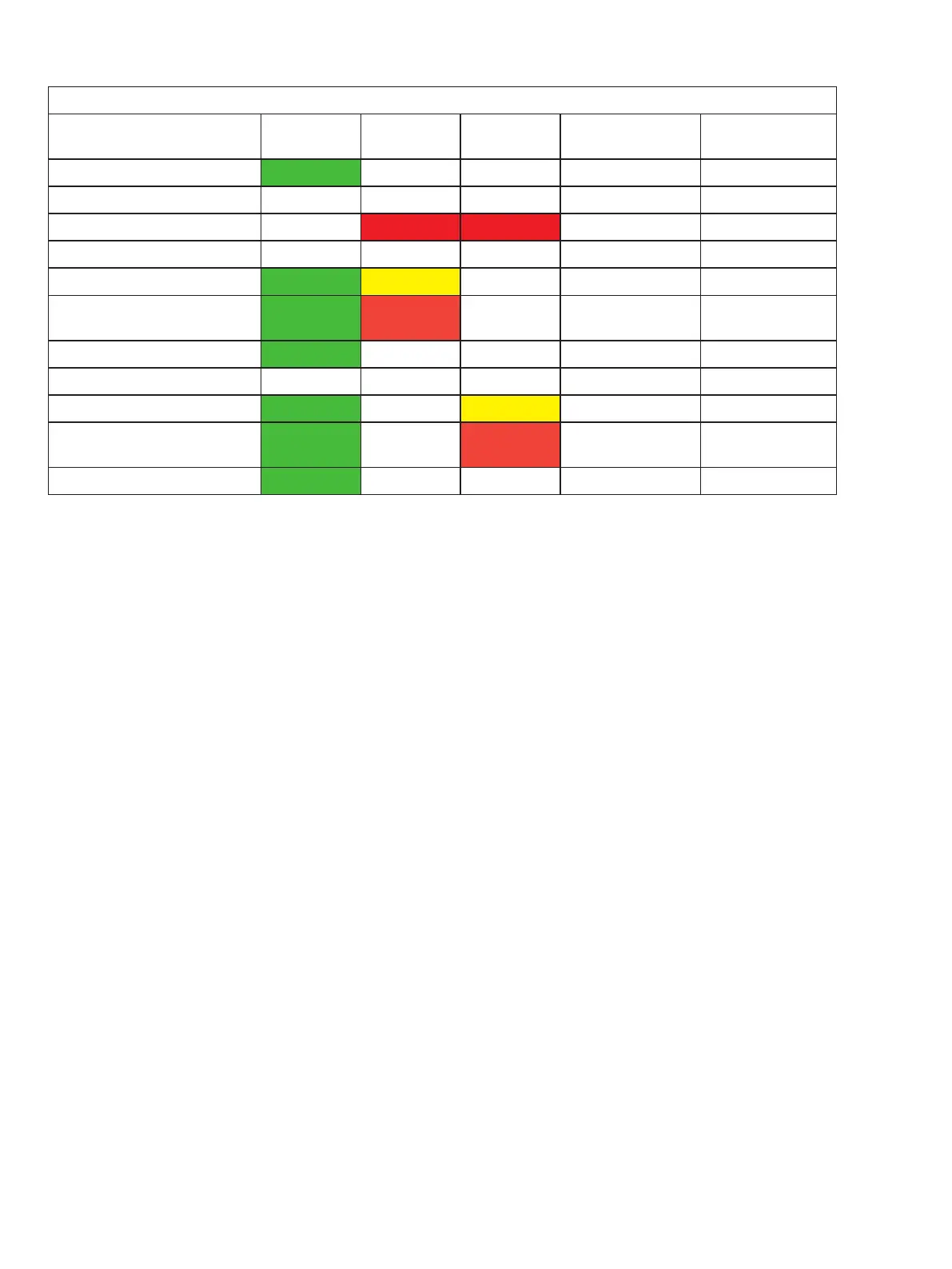

List of LED and error signal indications
Condition Green LED
Ch. 1:
Yellow / Red
Ch. 2:
Yellow / Red
Status relay, N.C.
Power rail
signal status
Device OK Flashing Energized OFF
No supply OFF OFF OFF De-energized ON
Device defective OFF Red Red De-energized ON
Channel 1, relay energised Flashing Yellow Energized OFF
Channel 1, relay de-energised
at cable fault
Flashing Red flashing De-energized ON (if activated)
Channel 1, relay de-energised Flashing OFF Energized OFF
Channel 2, relay energised Flashing Yellow Energized OFF
Channel 2, relay de-energised
at cable fault
Flashing Red flashing De-energized ON (if activated)
Channel 2, relay de-energised Flashing OFF Energized OFF
