ELECTRICAL CONNECTION
The supply line of the wallbox must be disconnected from the power supply during installation work.
CONNECTION TO THE MAINS
The supply line must be correctly fused.
1. Pull the supply cable into the box.
2. Connect the supply cable as shown in figure 2 and then relieve the strain and seal it using the cable gland.
RCD SWITCH
CONNECTING
TERMINALS
FEED POINTS FOR SUPPLY CHAIN
(up to 16mm²)

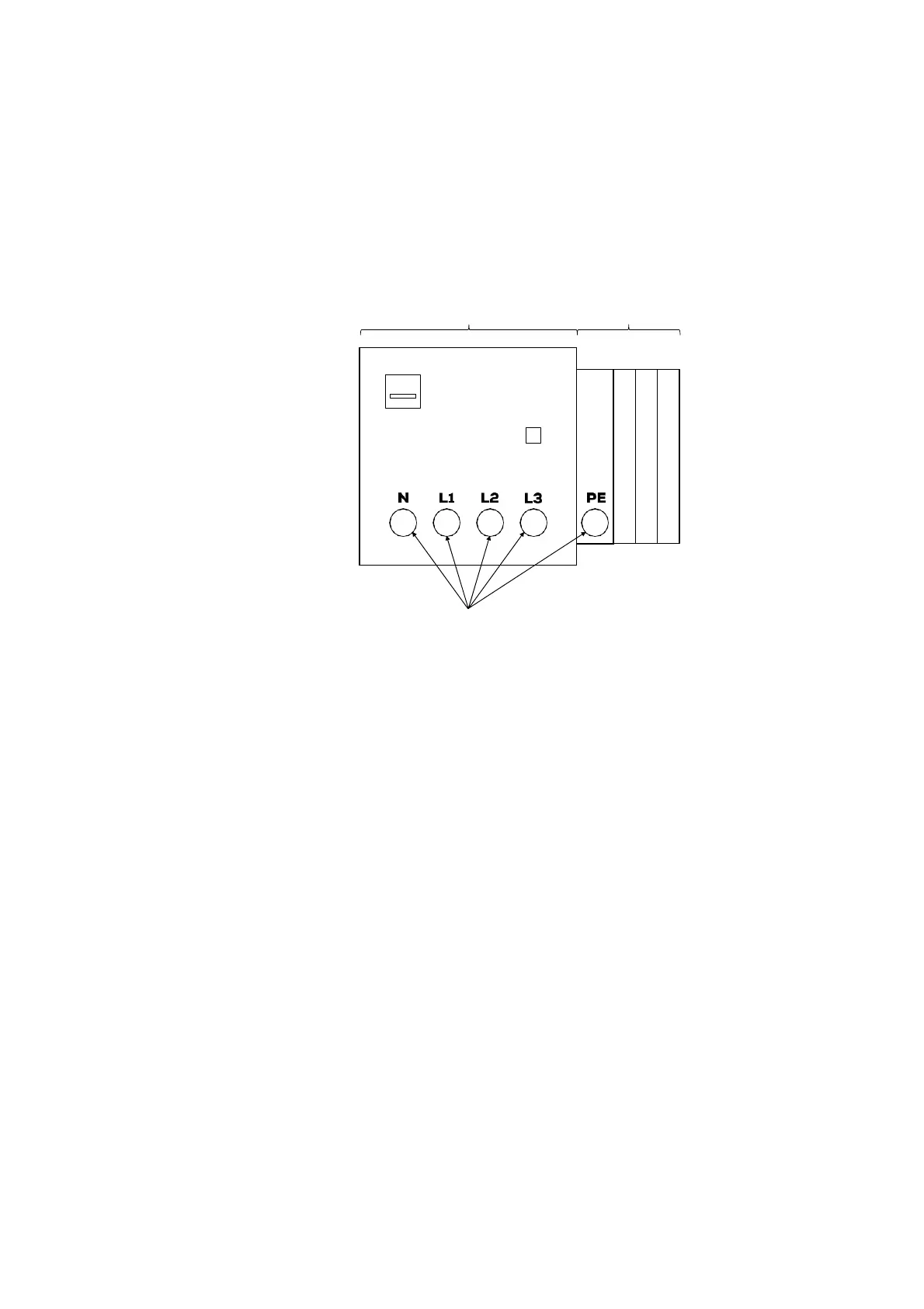

Figure 1 Connection position of the supply line
Check the electrical connection and voltages with the help of a meter.
Also make sure that neutral (blue) and earth (PE, yellow/green) are connected correctly.
