SETTING THE MAXIMUM CURRENT
It should be noted that the charging speed is essentially dependent on two factors:
1. The maximum power output of the wallbox
2. Maximum charging power of the electric vehicle.
Preferably the wallbox should be connected with three phases.
Before commissioning, the maximum current that the wallbox draws via the supply line must be set using the enclosed jumper
on the control board.
When setting the maximum current, it must not be higher than the fuse or the cable cross-section and the length of the supply
line allow.
The setting is made by attaching the jumper to the corresponding positionon

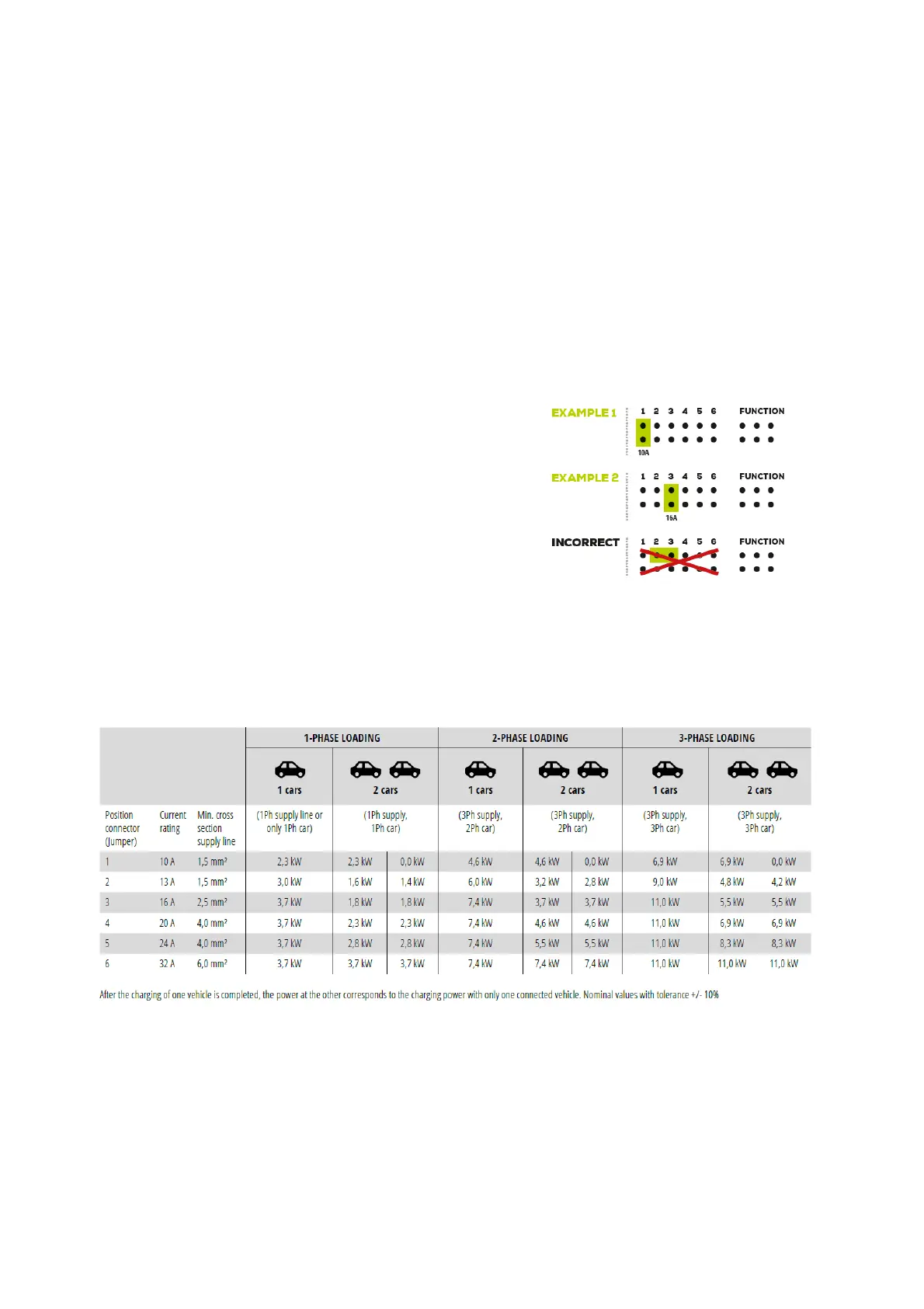

the control unit. The slots on this can be found with the label "I max".The
assignment of the slots is shown in the following tables:
VALUES FOR ALPHA NRG1002 (MAX. 22kW PER VEHICLE)
