ELECTRICAL CONNECTION
The supply line of the wallbox must be disconnected from the power supply during installation work.
CONNECTION TO THE MAINS
The supply line must be correctly fused.
1. Pull the supply cable into the box.
2. Connect the supply cable as shown in figure 2 and then relieve the strain and seal it using the cable gland.

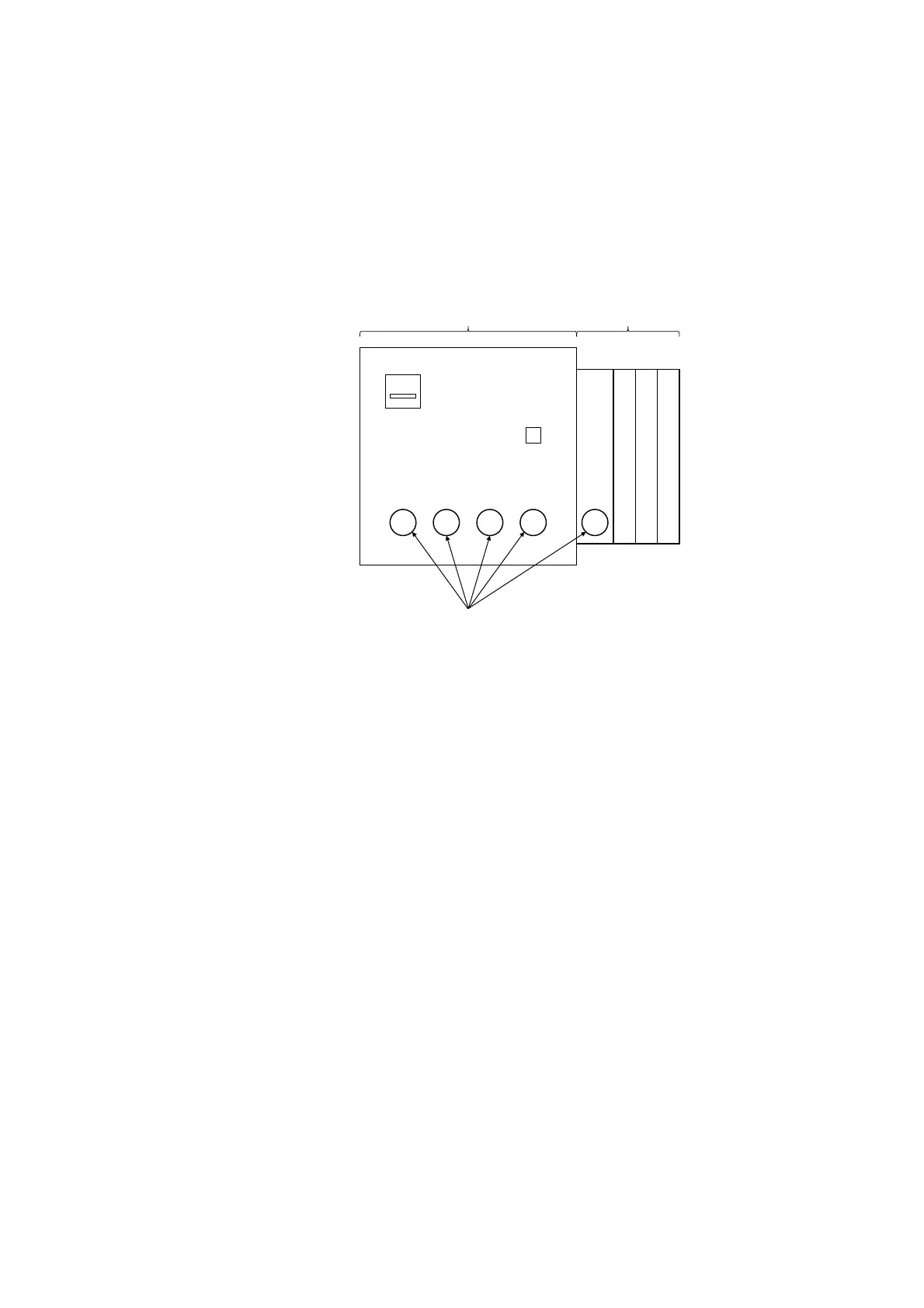

Figure 1
Connection position of the supply line
Check the electrical connection and voltages with the help of a meter.
Also make sure that neutral (blue) and earth (PE, yellow/green) are connected correctly.
SETTING THE MAXIMUM CURRENT
It should be noted that the charging speed is essentially dependent on two factors:
1. The maximum power output of the wallbox
2. Maximum charging power of the electric vehicle.
Preferably the wallbox should be connected with three phases.
Before commissioning, the maximum current that the wallbox draws via the supply line must be set using the enclosed jumper
on the control board.
When setting the maximum current, it must not be higher than the fuse or the cable cross-section and the length of the supply
line allow.
The setting is made by plugging the jumper into the corresponding position on the control unit. The slots on the control unit can
be found by the inscription "I max". The assignment of the slots is shown in the following table:
N L1 L2 L3 PE
RCD SWITCH
CONNECTING
TERMINALS
FEED POINTS FOR SUPPLY CHAIN
(up to 16mm²)
