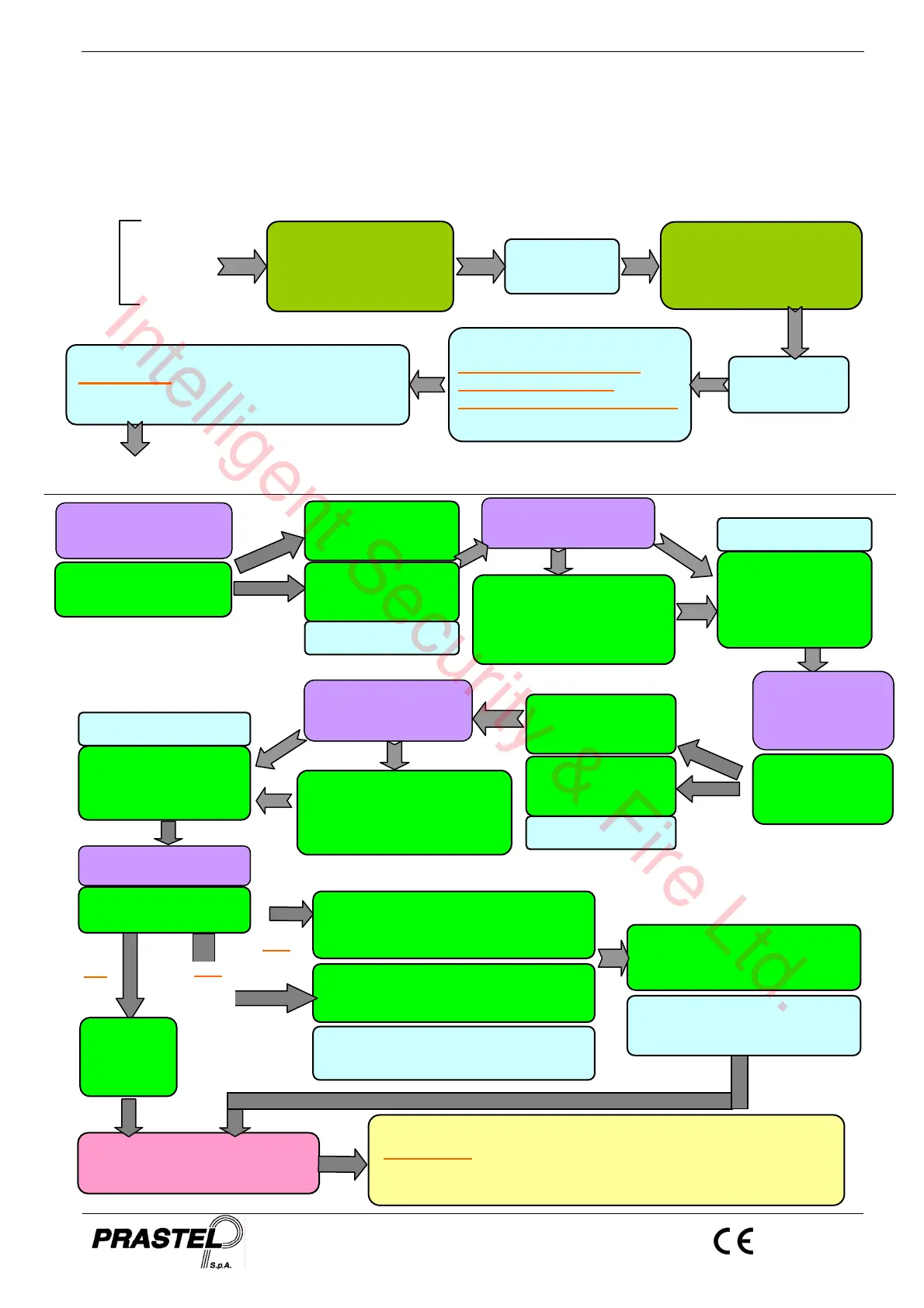

4.3 PROFESSIONAL LEARNING PROCEDURE (see also pages 8-10)
Using the professional learning procedure the installer can determine:
a) the instant in which the opening and closing slow-down starts
b) the pedestrian function
c) the safety device trigger mode.
When the motor and the safety devices are connected, programme the remote controls to be used (see page 8)
with the gate stopped (green LED GC turned on).
Yellow LED
flashes
Yellow LED
stays on
The two leaves briefly open
If motor turns in reverse,
invert wires and start
procedure again from RESET.
The second leaf then the first leaf close
ATTENTION : if there are no electric limit
switches or mechanical stop in opening see note
4, point g
RESET:
press and hold the
programming button
P1/SET for 2 seconds
Position the
gates half
open
Within 5 seconds, press
the programming button
P2/RADIO for 1 second
Stop then
invert
Stop then
invert when
cleared
Yellow LED turns off.
End of learning.
When the slow-down is to
start press button 1 of a
remote control for leaf 1 and
button 2 for leaf 2.
Press P1/SET or
remote control
button 1.
The gate closes
Will pedestrian
function be used?
Press
together
P1/SET and
P2/RAD
Press the button of the remote
control that will be used for the
pedestrian function (different from 1)
Control unit starts pedestrian
o
p
enin
g
Press P1/SET or button 1 of
the remote control to stop
pedestrian opening
Press P1/SET or button 1 of the
remote control
NO
YES
only by
wire
Photocell “PHO”
in closing must:
Press P2/RAD or
button 2 of the
remote control
Opening slow-
down
Pedestrian function
Safety
intervention in
closing
Safety intervention
in opening
The “EDG” safety in
opening must:
Stop then
open when
cleared
Stop then
invert for 2
sec.
Press P1/SET or
remote control
button 1
Press P2/RAD or
button 2 of the
remote control
Electric limit switch
or mechanical stop
triggering
Y
ES
NO
End of o
p
enin
g
When the slow-down is to
start press button 1 of a
remote control for leaf 1
and button 2 for leaf 2.
Closing slow-
down
Electric limit switches
or mechanical stop
intervention
Y
ES
NO
End of closing
Adjust trimmers if necessary.
ATTENTION
A variation of trimmer “FOR” (speed) requires the repetition
of the learnin
g
p
rocedure from RESET.
MANUAL INTERVENTION TO CHANGE THE FUNCTIONS
YES
by radio
+ by wire
The gate opens
Control unit carries out
STOP and re-closing
